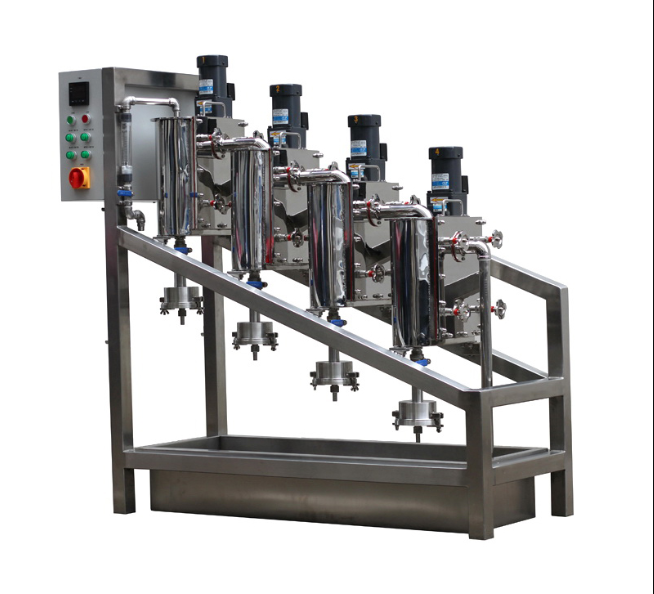

Yante YT-BFC-4 Bauer Fiber Classifier（4 classes） (580±1 r/min)

Specimen: 10g (O.D.), concentration 1％; Specimen tank:4 tanks

Flow meter: float type 10L.

The speed of the blender: 580±1 r/min .

Sieve mesh: 14mesh、28mesh、48mesh、100mesh

Flow velocity: 0~20L/min (According to the experiment adopted standard adjustment). precision grade 0.5%R.

Screening of time: 0~9999min (According to the experiment adopted standard adjustment)

Source: continuous water

Main material: 304 Stainless steel

Outer dimensions: 1780mm(long)×520mm(width)×1680mm(high)

Instrument weight: 130Kg

Power: 240W/380V

Datasheet
