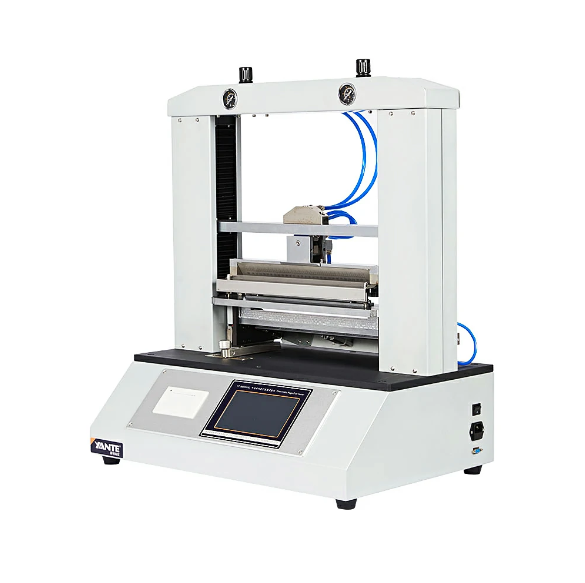

Yante YT-BBS500Q Pneumatic Page Pull Tester (1-500N)

Power Supply: AC220±10％，50Hz 50W

Working Environment:

Temperature: 10~35℃

Humidity: ≤85％

Gas source: ≥0.6Mpa

Display: 7 inch color touch screen

Measuring range: 1-500N

Resolution: 0.1N

Indication accuracy: ±1% (Range 5%～100%)

Maximum clamping page length: 310mm

Minimum clamping page length: 100mm

Return speed: 1～400mm/min, Speed accuracy: ±1%

Test speed: 1～400mm/min, Speed accuracy±1%

Print: Built-in thermal printer

Communication Interface: RS232 (default) (USB, WIFI optional)

Dimension: 544×420 ×810 mm

Net Weight: 76kg around
