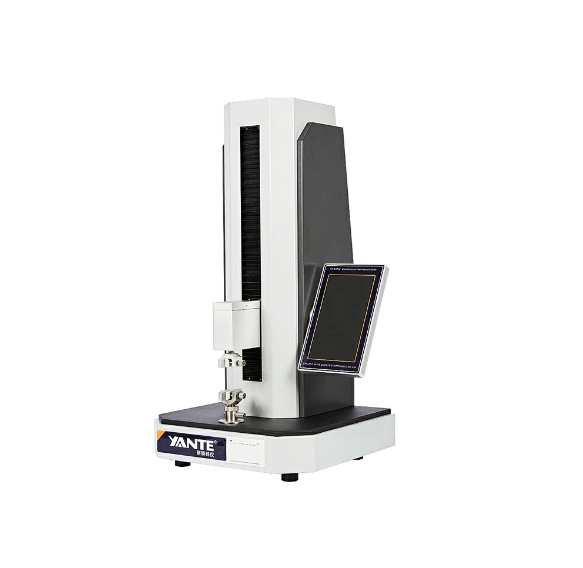

Yante YT-BAP30 Back Adhesive Peel Strength Tester (0.3～30N)

Power Supply: AC100～240V，50/60Hz 100W

Working Environment:

Temperature: 10~35℃

Humidity: ≤85％

Display: 10 inch color touch screen

Measuring range: 0.3～30N

Display resolution: 0.001N

Indication error: ±1%(Range 5%～100%)

Work area: 35～300 mm (Can be adjusted arbitrarily)

Sample width: 80mm

Stretching speed: (1～500)mm/min (Can be adjusted arbitrarily)

Print: Built-in thermal printer

Communication Interface: RS232 (default) (USB, WIFI optional)

Dimension: 550×470×930 mm

Net Weight: 71kg
