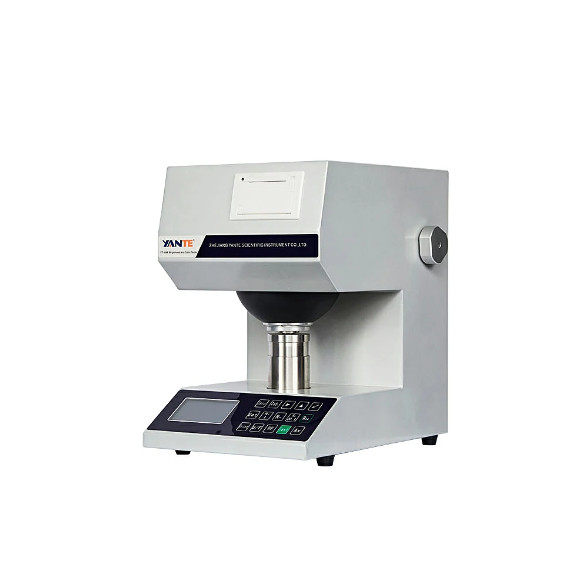

Yante YT-48A Brightness and Color Tester (AC100-220V (50/60) Hz 50W)

Power supply: AC100-220V (50/60)Hz 50W

Working Environment:

Temperature: 10~35℃

Humidity: ≤ 85％

Display: 240X128 dot matrix LCD screen

Light source: Analog D65

Integrating sphere: Diameter 150mm

Sample Size: Test plate diameter ≥φ30mm while sample thickness≤40mm

Resolution ratio: Chromaticity Coordinate 0.0001, others 0.01

Zero Drift: ≤0.1

Indicating Drift: ≤0.1

Indication accuracy: Chromaticity coordinates ≤0.01, R457 ≤0.5 Y≤1.0

Repeatability: R457≤0.1, chromaticity coordinates ≤0.001, Y ≤0.1, △E ≤0.2

Specular Reflectance Accuracy: ≤0.2

Print: Built-in thermal printer

Communication Interface: RS232（optional）

Dimension: 385×310×400 mm

Net Weight: 14.5kg around
