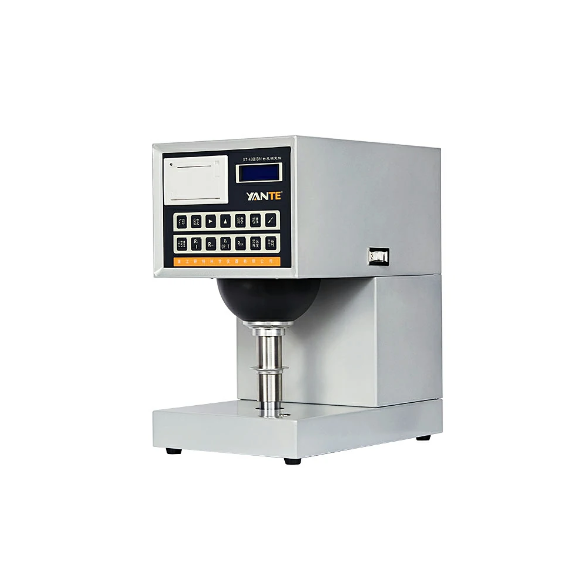

Yante XT-48BN Brightness Meter (AC100-220V (50/60) Hz 50W)

Power supply: AC100-240V (50/60)Hz 50W

Working Environment:

Temperature: 10~35℃

Humidity: ≤ 85％

Display: 128X32dot matrix LCD screen

Light source: Analog D65

Integrating sphere: Diameter 150mm

Sample Size: Test plate diameter ≥φ30mm while sample thickness ≤40mm

Zero Drift: ≤0.1

Indicating Drift: ≤0.5

Repetitive Accuracy: ≤0.02（10 consecutive tests at intervals of 10 seconds）

Specular Reflectance Accuracy: ≤0.1

Print: Built-in thermal printer

Communication Interface: RS232（optional）

Dimension: 365×260×425 mm

Net Weight: 12kg around
