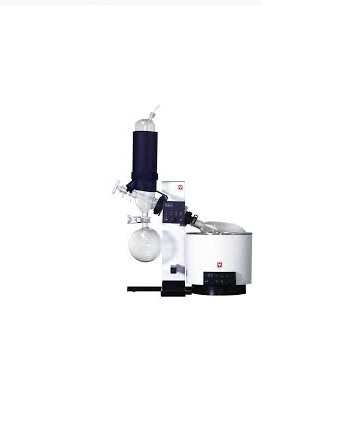

Yamato RE212BW-D Rotary Evaporator

Condenser: Type B (vertical)

Configuration:

Glass condenser: Vertical double-wound coil (coolingsurface area: approx. 0.143mm², with heatinsulation) vacuum seal (FKM, single-sided PTFE finish)

Rotary joint: TS29/38 inner diameter ø18×L208mm

Standard flasks: Evaporative flask (TS29/38, 1L) and clip (POM), receiving flask (S35, 1L), and clamp (SUS)

Motor: DC brushless motor

Connection nozzle dia.: Outer diameter 10mm (cooling water/vacuum)

Performance:

Rotation speed range: 5 to 315rpm encoder type digital setting and display

Jack: Manual balance type (~200mm stepless adjustment, fixed/released by 90°Crotation)

Evaporation capacity: Approx. 23 mL/min (water evaporation)

Other features: Automatic reverse switching by forward/reverse/timer, Power failure recovery (mode selection type)

Standard:

Applicable distillation flask: $29 50 to 2000mL (JIS standard)

Applicable receiving flask: 100 to 2000mL

Power source (50/60Hz): AC100 to 230V Single phase, SE type (2P)/KC plug

Current: 1A

External dimensions (WxDxHmm): 529x324x745(jack maximum position: H945mm)

Weight: 9kg (Rotary evaporator body: approx. 7kg + glass set: approx. 2kg)

Water Bath:

Performance:

Temperature range: Room Temp. +10 to 90°C

Temp. adjustment accuracy: ±1.0°C

Configuration:

Exterior material: PBT (Glass fiber is entered)

Bath internal material: Stainless steel

Safety features: Automatic overheat prevention, Upper temperature limit abnormality, Independent overheat prevention (fixed temperature type), Power supply cut off by power supply fuse, Sensor disconnection detection

Other features: Calibration offset, overshoot notification, Power failure recovery function (mode selection type)

Standard:

Power source (50/60Hz): AC200 to 230V 5-6A Single phase

Bath internal dimensions and capacity: ø240×119mm/Approx. 5L

External dimensions: ø262 (Up to 286 mm in depth)x H 240mm

Weight: Approx.4.5kg

Accessories: Instruction manual, Warranty card, Power cord (approx. 3m), Fuse 15A (large), Fuse 2A (small)
