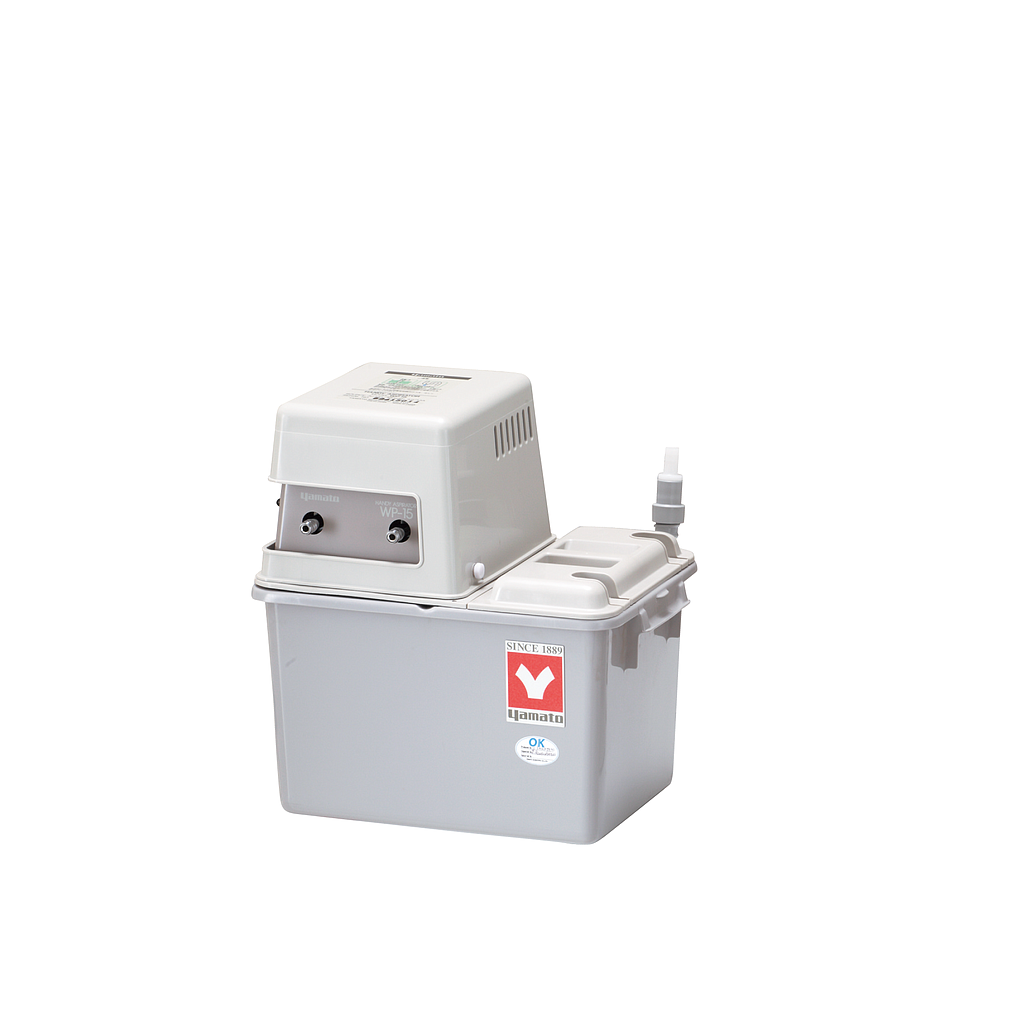

Yamato WP-15 Handy Aspirator (10L)

Ultimate pressure: Depends on stream pressure at operating temperature

Ultimate vacuum: 1.2kPa（9.2Torr）at 10℃

Ultimate vacuum: 2.3kPa（17.5Torr）at 20℃

Ultimate vacuum: 4.2kPa（31.8Torr）at 30℃

Discharge rate: 50Hz　11〜13L/min×2

Discharge rate: 60Hz　12〜14L/min×2

Aspirator: O.D. 12mm (metal) x 2

Water tank: Polypropyrene resin made 　10L

Circulation pump: 80W self-suction type　Polypropyrene resin made

Vacuum controller (with pressure gauge): can be attached（Option）

Drainage method: Natural drainage by overflow

Suction port size: O.D. 12mm

External dimensions（W×D×H mm）: 360×250×360mm

Power Source: AC100V 2/2.3(50/60Hz)A

Weight: 9kg
