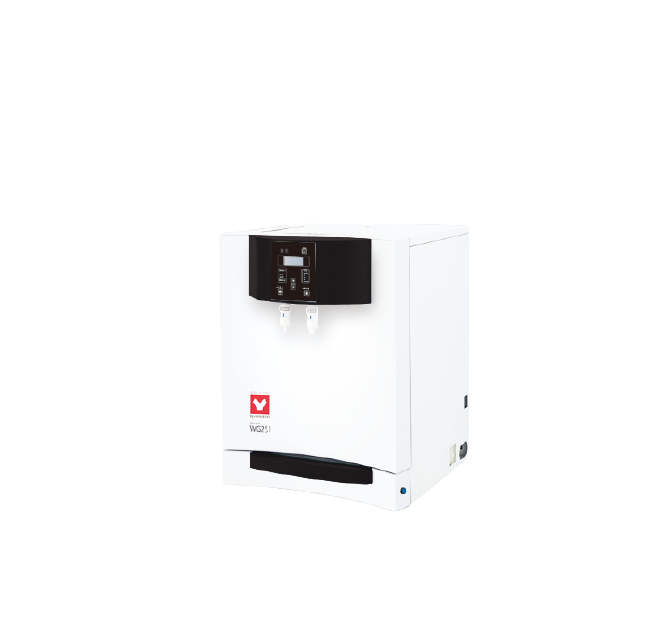

Yamato WG251 Water Purifier (1.5L/h, 1.2kW)

Water purifying method: Ion exchange→Distillation→Filtration

Water feeding: One-touch coupler connecting resin hose/free hose connecting

Water discharging: Left/right selection for connecting hose

Collection of distilled water: Deionized water/Distilled water

Distilled water production: Approx. 1.5L/h

Distilled water delivery rate: 0.5 - 1L/min

Deionized water delivery rate: 0.5 - 1L/min

Range of production: 0.1 - 30L/ Continuous production

Condenser: Hard glass

Heater: Ceramic heater 1.2kW

Pre-treatment cartridge: 0.1μm diameter hollow fiber + Activated carbon

Ion-exchange resin cartridge:: CPC-S 4L×1pc. (Activated carbon high-purity cartridge)

Distilled/deionized water filter: 0.1μｍ×2 membrane filter

Leakage indication: Forced shutdown of solenoid valve by water leakage sensor

Distilled water tank capacity: 30L polyethylene tank

Product water intake tray: Drawer type, Load capacity 10 kg

Multi-purpose distilled water sampling port: Right side of main unit, 1pc.

Water level sensor: Reed switch, five level detection

Raw water pressure range: 0.5 to 5×100kPa (0.5 to 5kgf/cm2)

Accessories: Feed /drain water hose 2m, Connecting hose assembly, Pre-treatment cartridge, Ion-exchange resin cartridge, membrain filter, Hose clamp

External dimensions（W×D×H mm）: 600×660×780mm

Power Source: AC115 V/AC 220V Single phase with step-down transformer

Weight: 55kg
