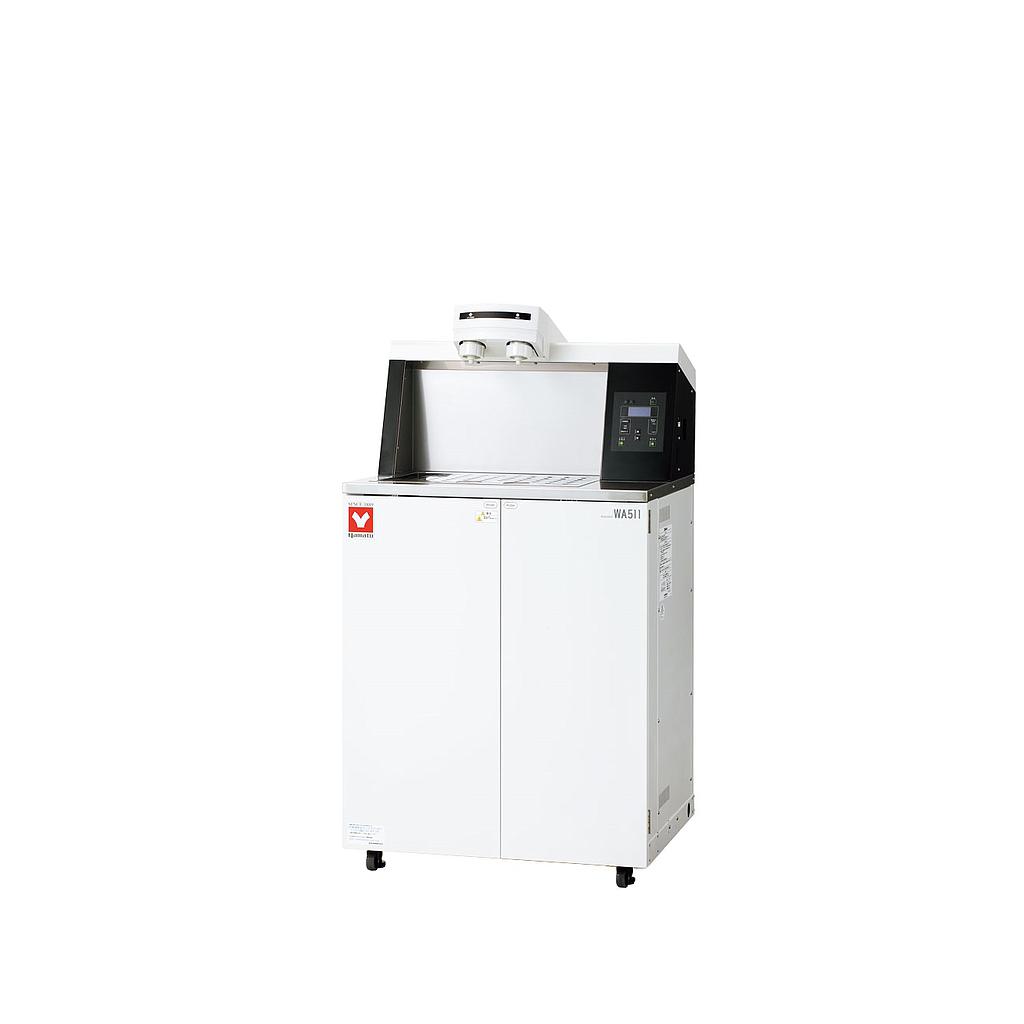

Yamato WA511 Water Purifier (5 L/h, 1.9kW×2 pcs)

Water purification method: Pretreatment -> Distillation -> Ion-exchange -> Filtration

Purified water/Quality level: Distilled water/A1, Ion-exchanged water/A4

Production of distilled water: Approx. 5 L/h

Collection of distilled water: Approx. 1. 4 L/ min.

Collection of Ion exchange water: Approx. 1. 4 L/ min.

Range of collection capacity: 0.1 to 85 L

Waste water discharging: Drain water connecting on both/back sides for the drain hose

Boiler: Stainless steel

Condenser: Stainless steel

Heater: Pipe heater, 1.9kW×2 pcs.

Pre-treatment cartridge: Activated carbon + Hollow fiber membrane, 0.1μm

Membrane filter: Hollow fiber membrane, 0.1μm

High purity cartridge: One-touch connecting type cartridge (Model: CPC-H, 3L)

Distilled water storage tank: Polyethylene made, 100 L

Water sampling table: Large stainless steel sink (With a splashing preventive mechanism）

Feeding pump: Electromagnetic pump

Raw water pressure range: 0.15 to 0.50 MPa

Accessories: Water supply hose 2m×1 pc. (with connecting unit), Drain hose 3m×1 pc. (with hose clamp)

Accessories: Pre-treatment cartridge, High purity cartridge (CPC-H), Membrane filter×2 pcs.

External dimensions（W×D×H mm）: 800×685×1510mm

Power Source: AC220V Single-phase

Weight: 130kg
