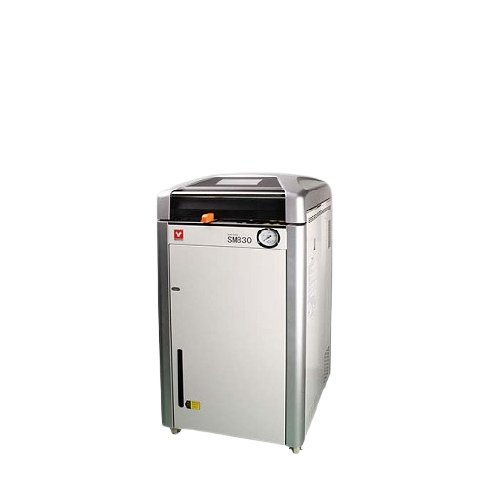

Yamato SM830 Steam Sterilizer (80L)

System: Automatic high-pressure steam sterilization

Operating temp. range (Sterilization): 105～135℃

Operating temp. range (Drying): 135～150℃

Max. pressure capacity: 0.255MPa

Operable ambient temp.: 5～35℃

Lid: Manual upward opening with an interlock for safety

Accessories: Stainless steel mesh basket (332dia. x 195.5D) x 2 pcs., Drain board, Chemical indicator strip, Drain bottle, Condensation collection container with magnetic bracket, each 1 pc.

Interior: Stainless steel

Temp. Controller: PID control by microprocessor

Internal dimensions（φ×H mm）: φ370×750mm

External dimensions（W×D×H mm）: 520×660×1161mm

Remarks(dimensions): 80L

Power Source: AC200～240V, 9A ～12.5A

Weight: 137kg
