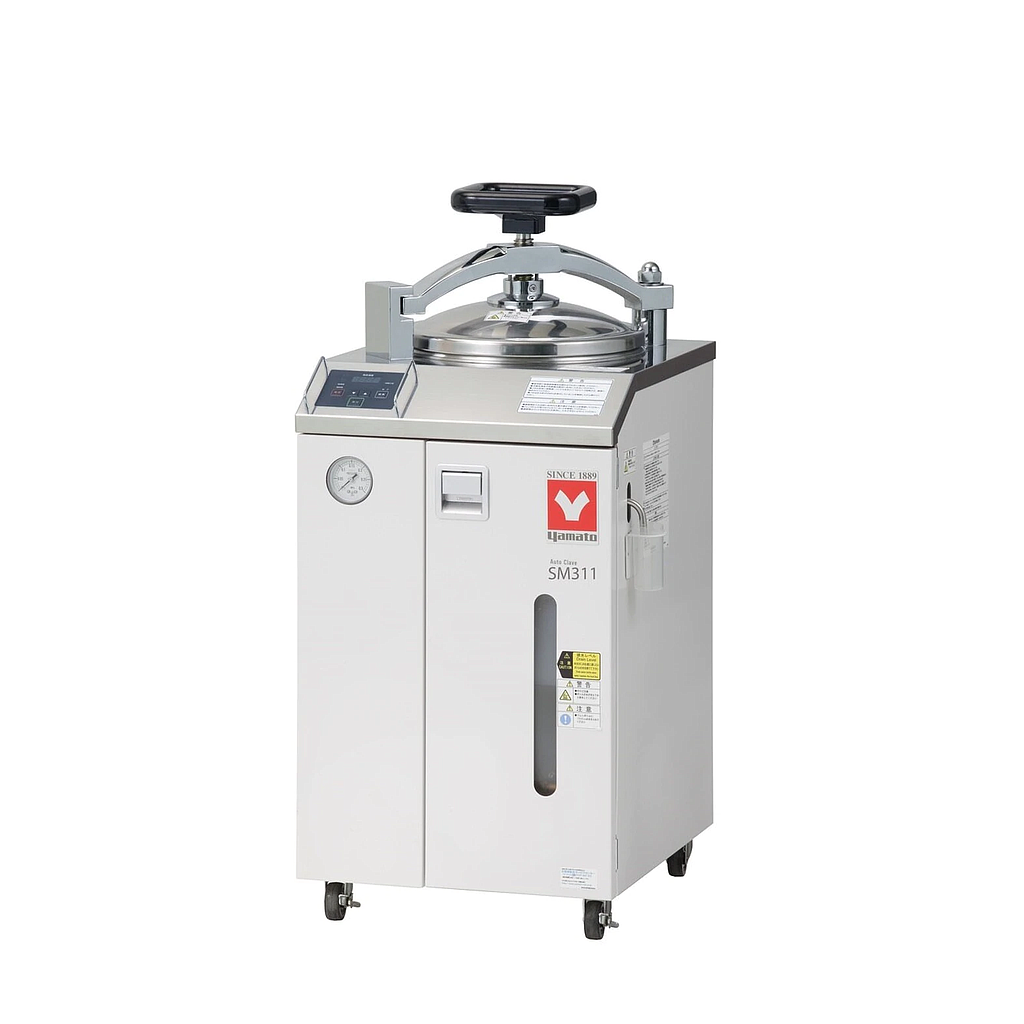

Yamato SM311 Steam Sterilizer (32L)

System: Automatic high-pressure steam sterilization

Operating temp. range (Sterilization): 105～128℃

Operating temp. range (Drying): 150～180℃

Max. pressure capacity: 0.2MPa

Safety device: Self-diagnostic functions(Detection sensor error, SSR short circuit, Heater disconnection, Main relay error), Safety valve, ELB, Drain bottle switch

Accessories: Stainless steel mesh basket (262dia. x 204Dmm) x 2 pcs., Drain board, Chemical indicator strip, Drain bottle, Condensation collection container with magnetic bracket, each 1 pc.

Interior: Stainless steel

Temp. Controller: PID control by microprocessor

Internal dimensions（φ×H mm）: φ300×455mm

External dimensions（W×D×H mm）: 440×530×968mm

Remarks(dimensions): 32L

Power Source: 220V 9.5A

Weight: 80kg
