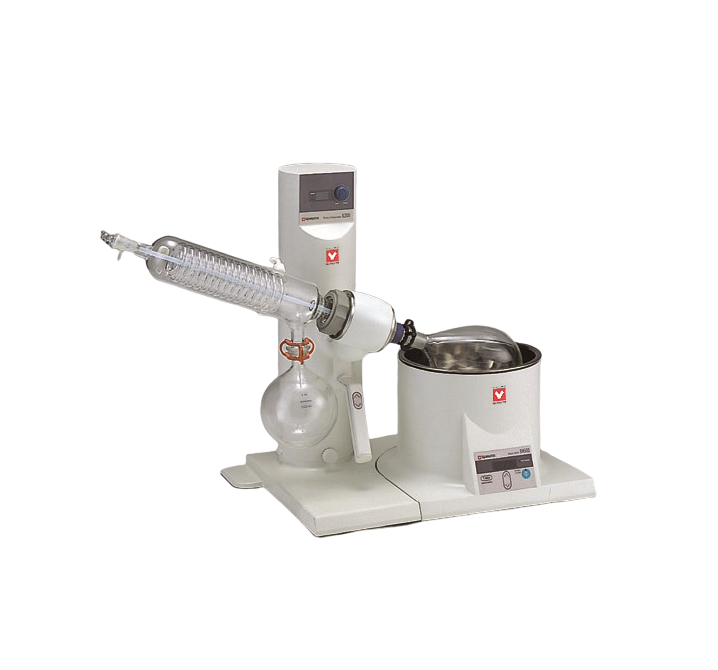

Yamato RE301A-WT Rotary Evaporator (TA300, 20~250 rpm)

RE301 main body+glass set A+water bath BM500 type+steam temperature display unit TA300 type.

Motor: DC brushless motor

Rotation speed: 20~250 (rpm)

Lift stroke: 130ｍｍ

Rotational speed setting: Control knob (digital indication)

Safety function (main unit): Manual-setting lower limit, motor overload

Lifting feature: Motorized lifting system

External dimensions（W×D×H mm）: 828×400×586mm

Remarks(dimensions): With Glassware A (mm), (716 when raised)

Power Source: AC100 to 240V 1.5A

Weight: 14.1kg

Remarks(weight): Excluding glassware and water/ oil bath.
