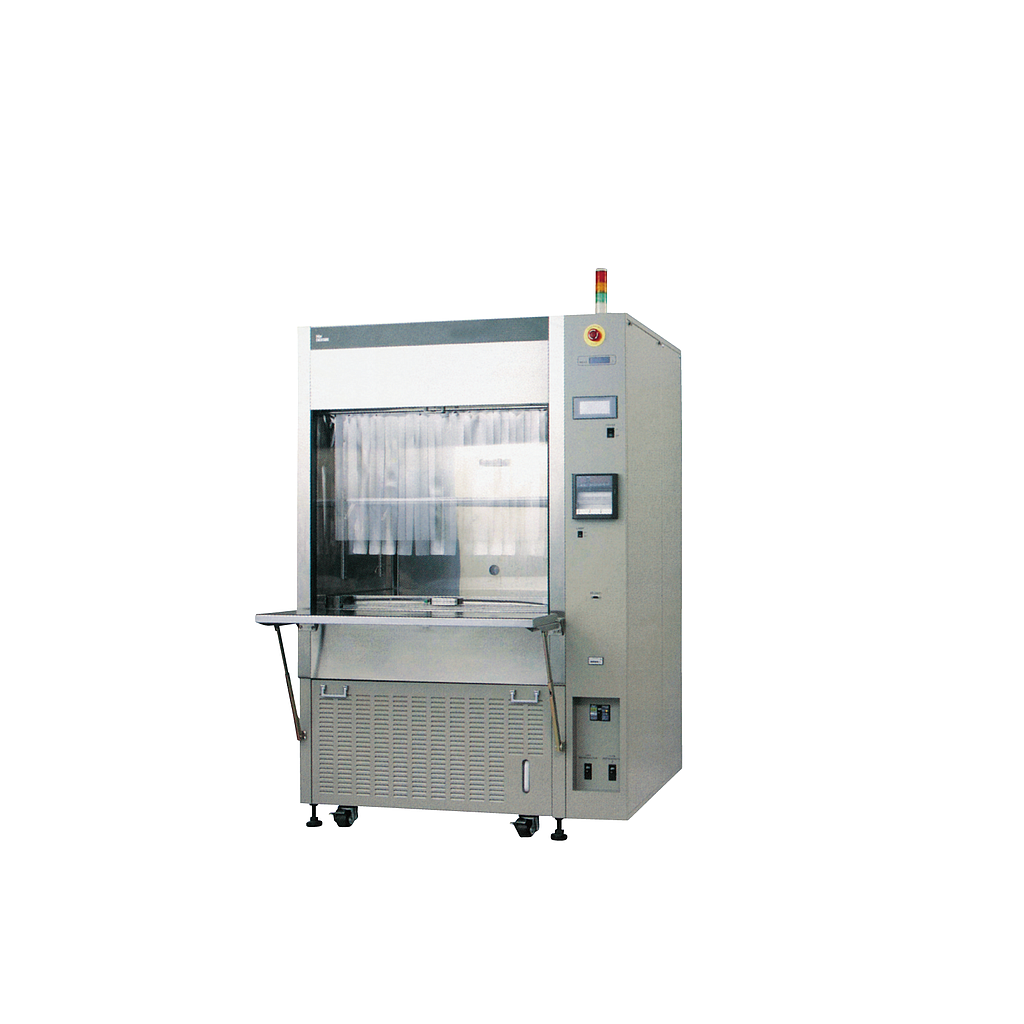

Yamato OTC-2D Open Chamber (300L, 3.0kW)

Type: Air curtain type (3 layers) (triple stream)

Setting temp. range: -30~+80°C (with econo-cover)

Time to reach: Approx. within 60min. from +25~-25°C

Time to reach: Approx. within 30min. from +25~+80°C

Temperature control: PID control by microcomputer

Temperature sensor: Pt resistance thermometer

External interface: RS232C (Communication function such as temp. setting, Run / Stop, Temp. monitor)

Refrigerator/Coolant: Rotary type/R404A, 1.1kW×2, Approx. 2kg×2

Heater capacity: 3.0kW

Cable hole: I.D. 60mm

Accessories:econo-cover

Internal dimensions（W×D×H mm）: 810×600×600mm

External dimensions（W×D×H mm）: 1130×1100×1700mm

Remarks(dimensions): 134L

Power Source: AC220V / AC380V Three-phase with step down transformer

Weight: 470kg
