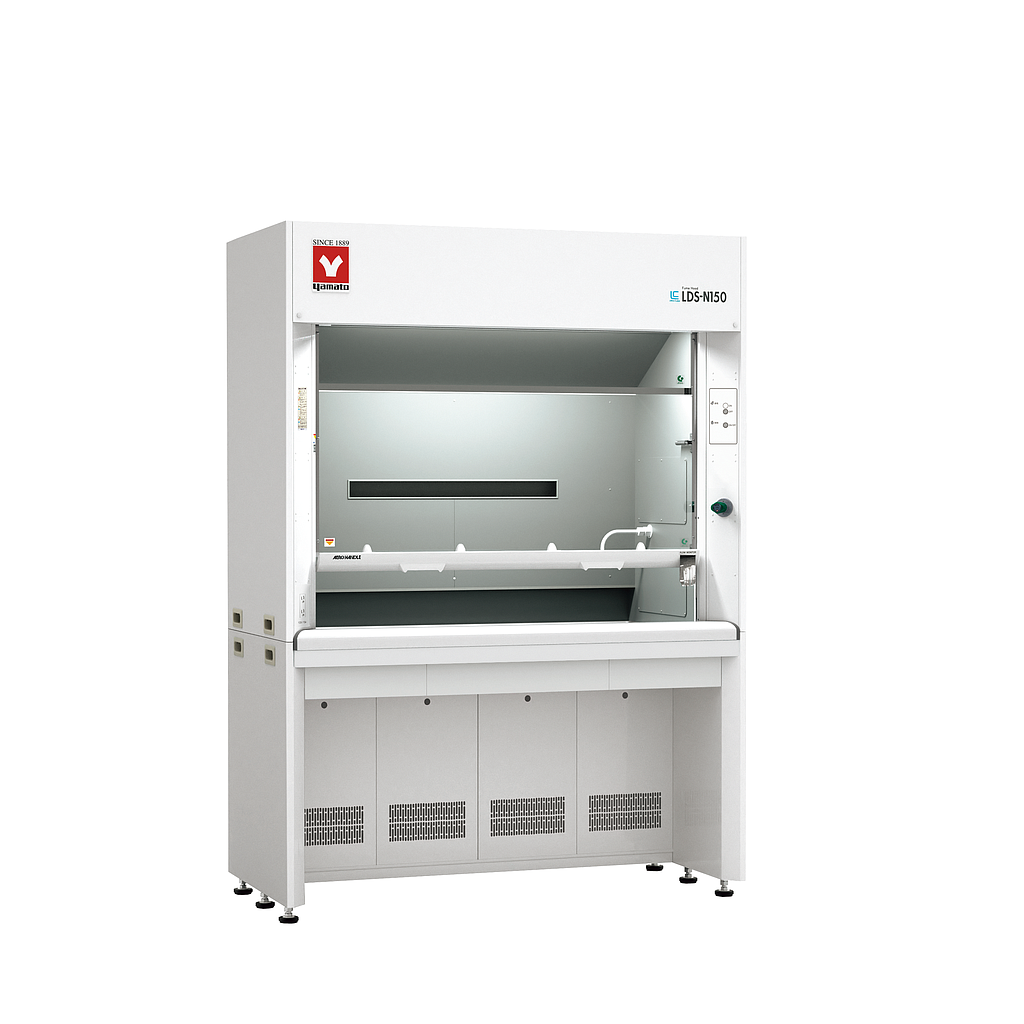

Yamato LDS-N150SJ Fume Hood (25Pa)

Exterior: Cool-milling steel, chemical-resistant baked paint finish

Interior: Non-asbestos, non-combustible decorative board (baffle plate: multi-slit type)

Working surface material: Ceramitite

Glass window: Reinforced glass, 6mm thickness, balance weight type

Water faucet: Single goose neck type, 1pc

Outlet: AC115/220V with dual grounding wire (dropout prevention) 1pc

Fluorescent lamp: 32W 1pc

Safety feature: Door drop prevention stopper, ventilator delay timer, exhaust blower activation monitor

Option: Gas cock, LDX anemometer, LED lighting, safety mechanism (double wire door fall prevention mechanism)

Standard discharge air quantity: 13m3/min

Static pressure: 39Pa

External dimensions（W×D×H mm）: 1500×750×2100mm

Power Source: AC115/220V

Weight: 320kg
