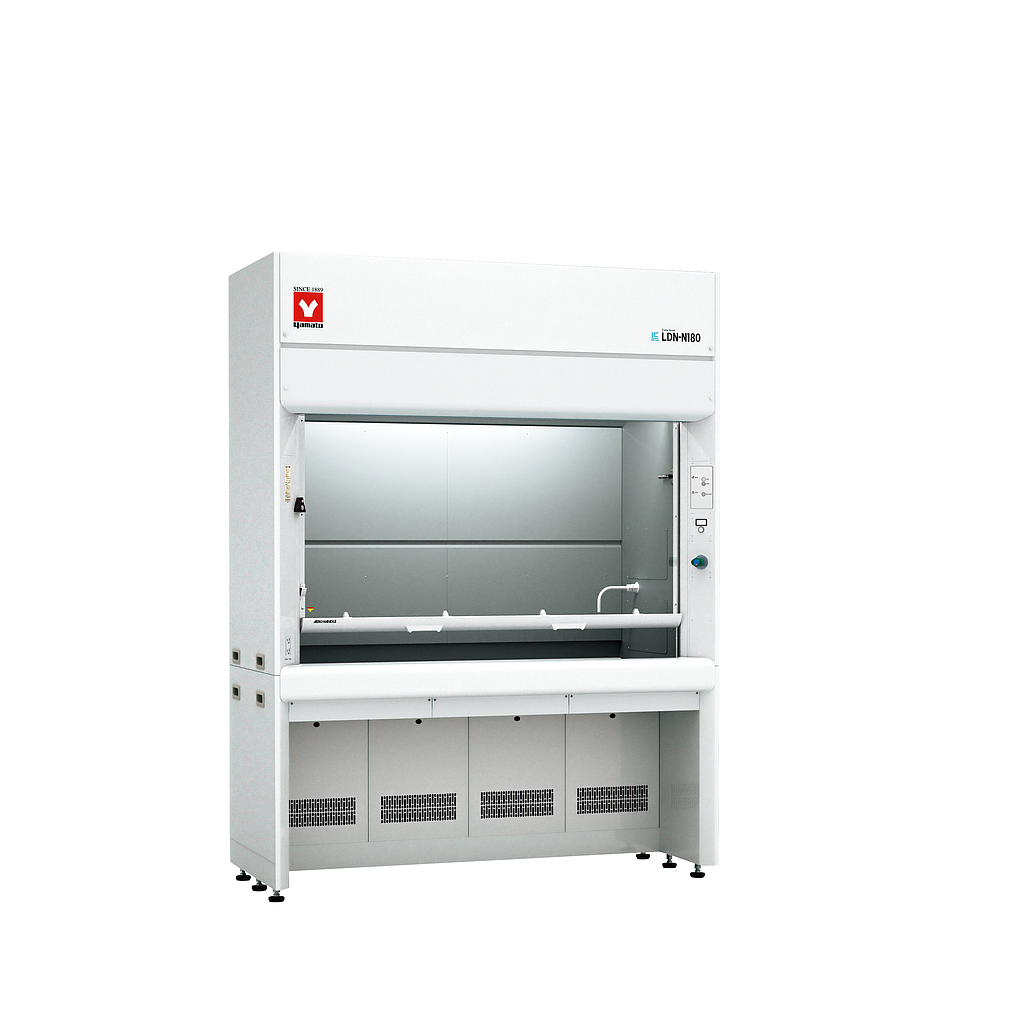

Yamato LDN-N120S Fume Hood Energy Saving Structure (10Pa/22Pa)

Exterior: Cold-rolled steel plate (chemical resistance baking finish)

Interior: Non-asbestos and non-combustible decorative board (Baffle plate: multi slit system)

Working surface material: Ceramitite (S)

Glass window: Tempered glass 6mm Balance weight

Water faucet: Single type 1pc

Outlet: AC115/220V with dual grounding wire (dropout prevention) 1pc

Lamp: LED lamp x 1pc

Pushed air method: Supply air from the front air wheel on the work surface (intake of indoor air)

Safety feature: Exhaust delay timer, Door falling prevention stopper, Flow monitor

Option: Flow monitor (LED bar display)

Standard discharge air quantity: 7m3/min (*0.25m/sec)/11m3/min (*0.4m/sec) *Front average wind speed

Static pressure: 10Pa (0.25m/sec)/22Pa (0.4m/sec)

External dimensions（W×D×H mm）: 1200×750×2400mm

Power Source: 115/220V

Weight: 320kg
