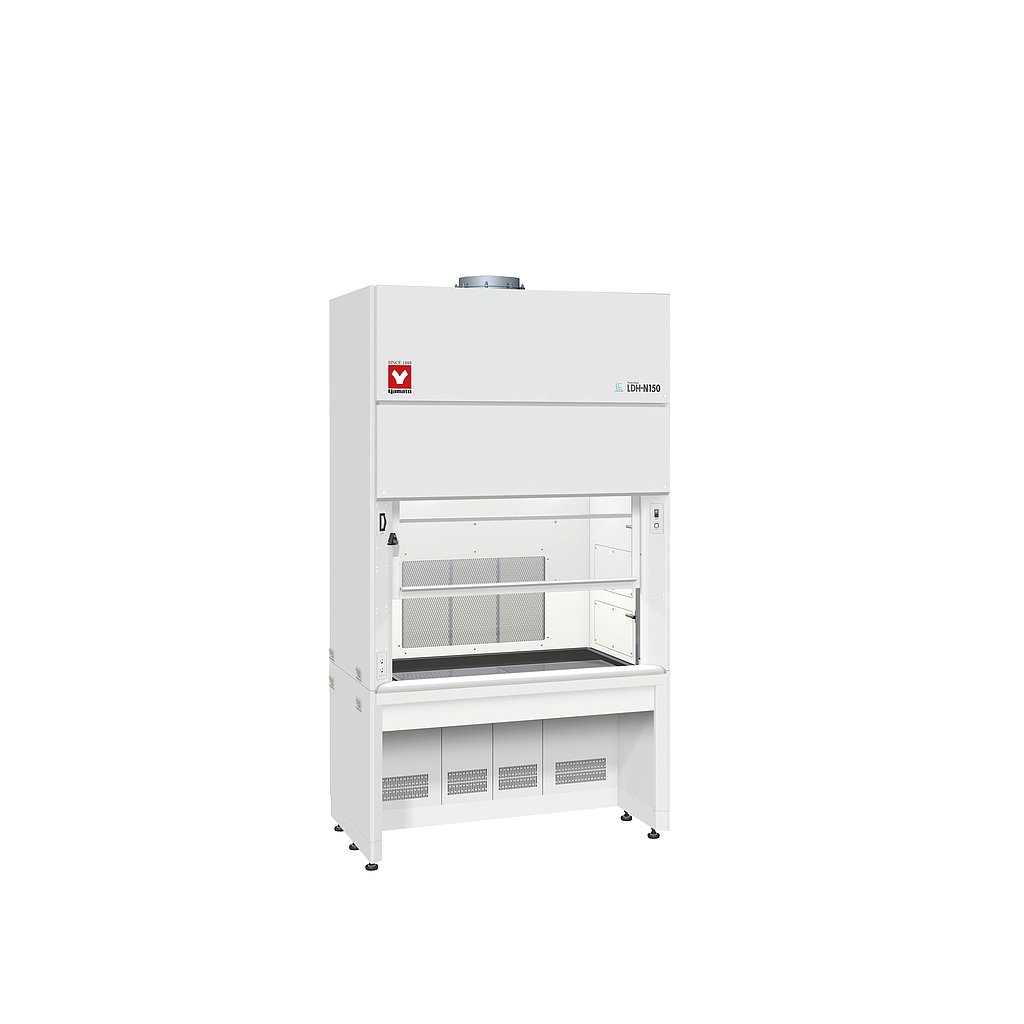

Yamato LDH-N150T Fume Hood (500 Pa)

Powder containment performance: Exposure amount : Less than 1 micro g/m3

Front wind speed: 0.5 m/s (door opening height : 400mm)

Exterior: Cold-rolled steel plate (chemical resistance baking finish)

Interior: Non-asbestos and non-combustible decorative board

Working surface materials: Trespa 20mm

Glass window: Tempered glass 6mm Balance weight

Outlet: AC115/220V with dual grounding wire (dropout prevention) 1pc

Lamp: LED type 2pcs

Powder collection element: HEPA filter and Pre-filter

HEPA unit: Closed type (Bag-in/Bag-out change)

HEPA filter: Collection efficiency : 99.99% (0.3 micro m)

Safety feature: Door falling prevention stopper, Flow monitor, Differential pressure gauge for HEPA unit etc.

Option: Compatible with Lab Cube unit

Standard discharge air quantity: 17 m3/min

Static pressure: 500 Pa

External dimensions（W×D×H mm）: 1500×900×2700mm

Power Source: AC115/220V

Weight: 500kg
