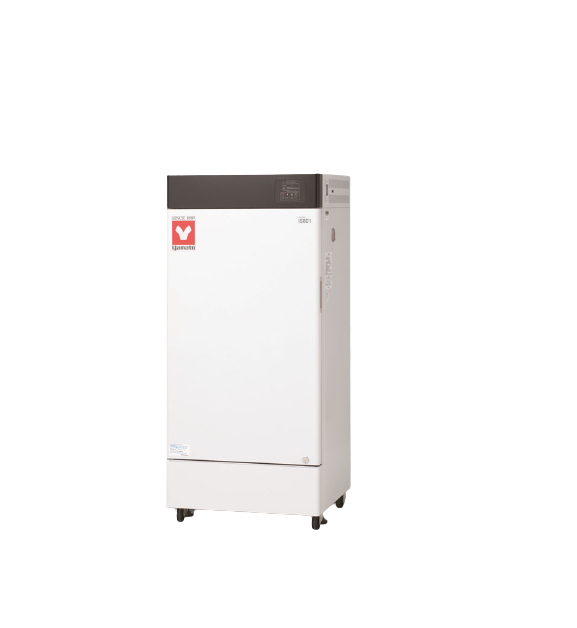

Yamato IS801 Programmable Incubator (318L, 0.73kW)

Type: Air Jacket Type, Natural Convection

Temperature Range: Room Temp. +5～80℃

Temp. Adjustment Accuracy: JTM K05 ±0.2℃ at 37℃

Temp. Distribution Accuracy: JTM K05 ±1.0℃ at 37℃

Time required to reach 60℃: Approx. 90 min.

Interior: Stainless Steel

Exterior: Cold rolled steel plate with melamine resin baking finish

Heater: Iron-chrome Wire Heater, 0.73kW

Exhaust Port: 30mm ID x 2 (side)

Inner Glass Window: Reinforced Glass 5mm t

Temp. Controller: PID control by microprocessor

Temp. Sensor: Pt100/K-Thermcouple

Shelf/ Support: 5 pcs./10 pcs.

Internal dimensions（W×D×H mm）: 600×530×1,000mm

External dimensions（W×D×H mm）: 710×655×1,611mm

Remarks(dimensions): 318L

Power Source: AC115V/AC220V 50/60Hz, Single phase

Weight: 105 kg
