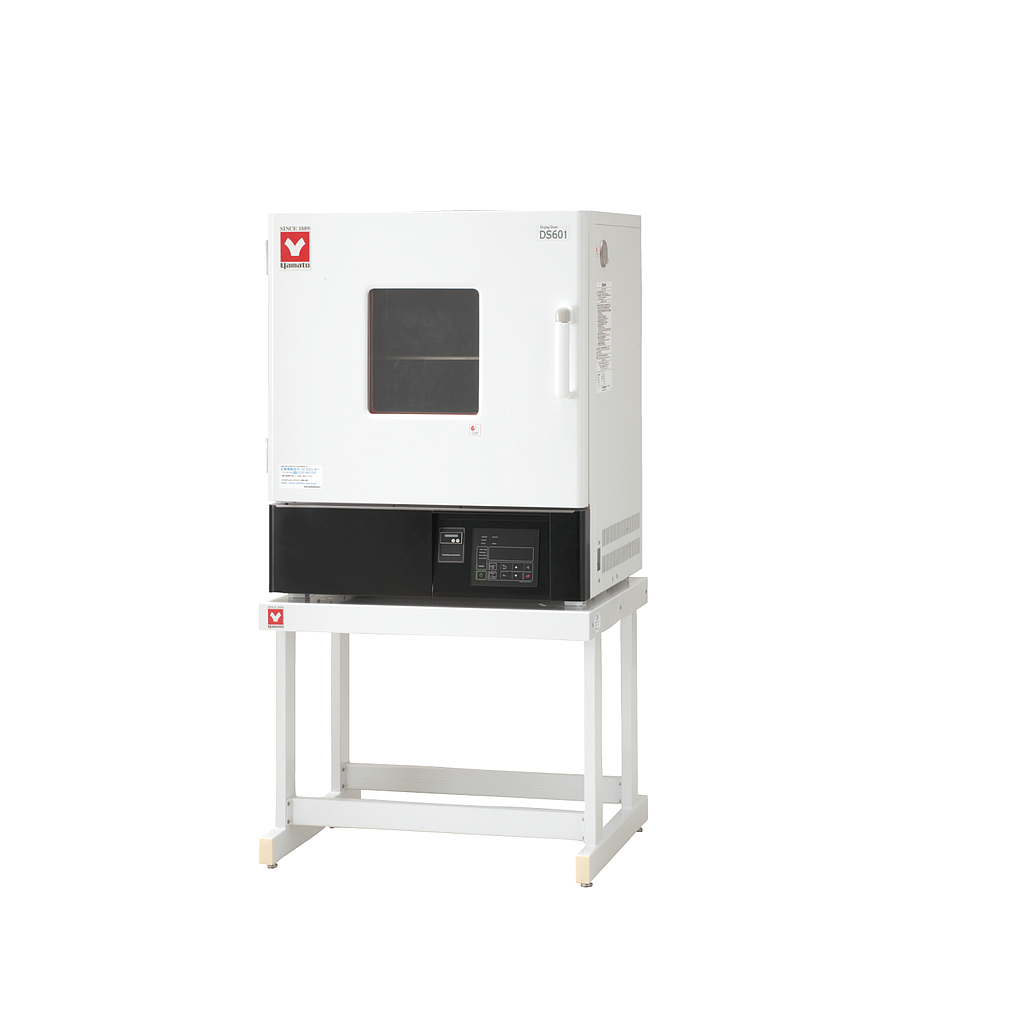

Yamato DS611 Programmable Gravity Convection Oven (162L, 1.36 kW)

Circulation Type: Natural Convection

Operating Temp.: Room Temp. +5~260°C

Temp. Adjustment Accuracy: ±1.0°C (at 260°C)

Max. Temp. Reaching Time: Approx. 90 min

Interior Material: Stainless Steel

Exterior Material: Cold Rolled Steel Plate with Melamine Resin Baked Finish

Heat Insulating Material: Glass Wool

Heater: SUS Pipe heater 1.36kW

Sensor: K-Thermocouple (for temp. adjustment and overheat prevention)

Cable Hole: I.D. 33mm (Right Side)

Exhaust Port: I.D. 33mm x 2 (Top Side)

Observation Window: 250 x 280mm Tempered Glass x 2 pcs

Temp. Control System: PID Control by Micro Computer

Internal dimensions（W×D×H mm）: 450×490×450mm

External dimensions（W×D×H mm）: 560×600×820mm

Remarks(dimensions): 162L

Power Source: AC220V 7A Single phase

Weight: 64kg
