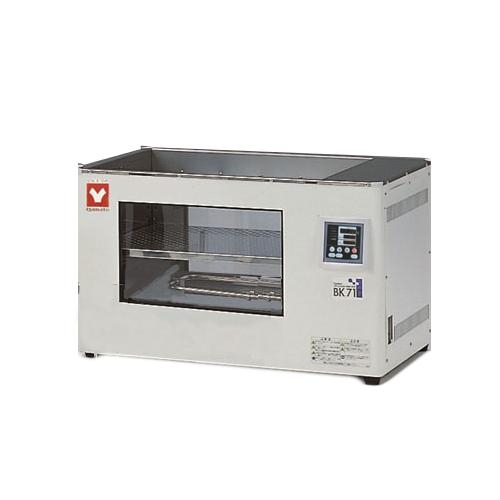

Yamato BK710 Water Bath (144L, 4.5kW)

Operating Temp. Range: RT+5~80°C

Interior Material: Stainless Steel and Glass

Temp. Controller: PID Control by Microprocessor (Fixed temperature operation)

Sensor: W sensor: Pt Resistance Thermometer, Pt 100Ω(Temp. Controller) + K Thermocouple (Overheat Protector)

Temp. Setting / Display Method: Digital Setting / Display

Overheat Protector: ON / OFF by Microprocessor

Heater (SUS316): 4.5kW

Window Dimensions: W440×H265mm

Included Accessories: Shelf plate 1pc., clamp 2pcs., stand 1pc., clamp holder 2pcs., tube connector 1pc., drainage cap 1pc.

Optional: External circulating pump, cooling coil, top cover, Trolley with caster

Stirring method: Stir by Pump

Temp. Control Accuracy: ±0.02~±0.07°C

Temp. Distribution Accuracy: ±0.3°C

Max. Temp. Reaching Time: Approx. 200min.

Stirring System (Magnet Pump): 60W

Internal dimensions（W×D×H mm）: 640×500×450mm

External dimensions（W×D×H mm）: 830×560×517mm

Remarks(dimensions): Bath Capacity Appox. 144L

Power Source: AC220V 23A Single phase

Weight: 46kg
