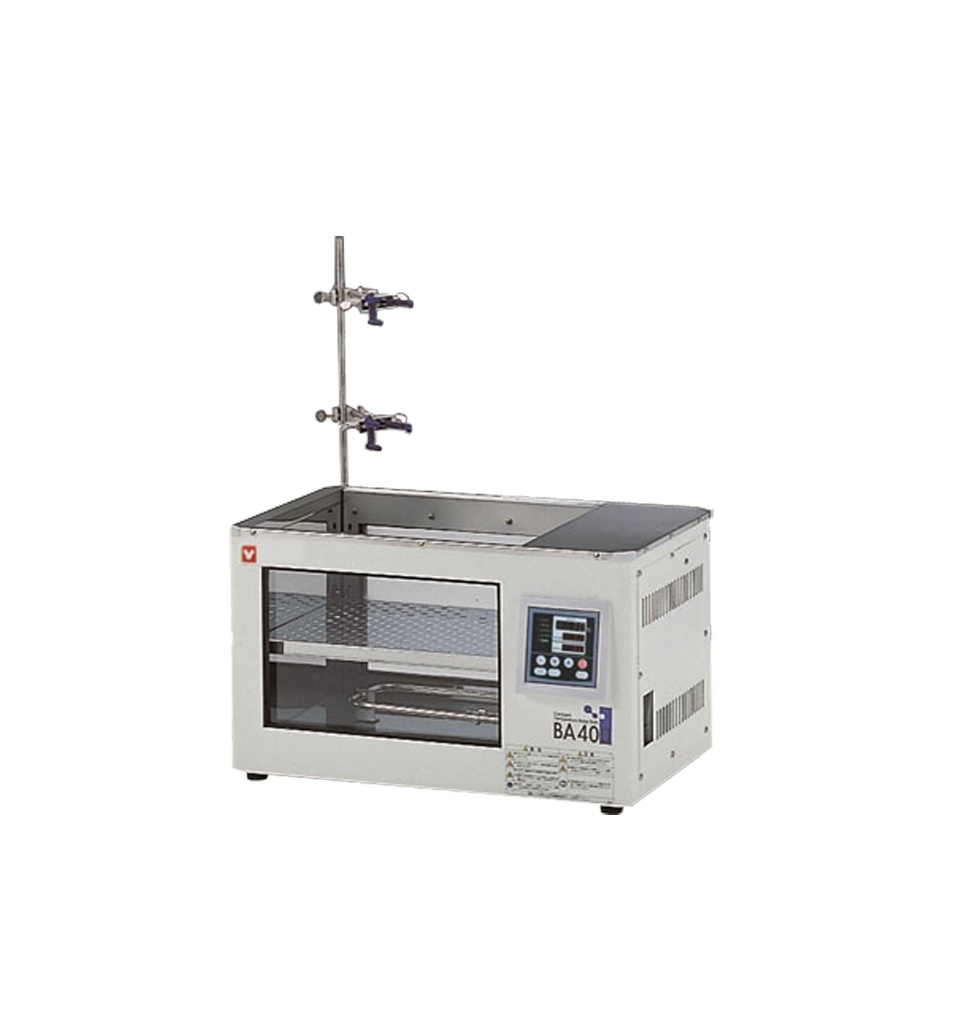

Yamato BA400 Water Bath (42L, 2.2kW)

Operating Temp. Range: RT+5~80°C

Interior Material: Stainless Steel and Glass

Temp. Controller: PID Control by Microprocessor (BA: Fixed Temperature and Program Operation, 1 Pattern 30 Steps or 2 Patters 15 Steps)

Sensor: W sensor: Pt Resistance Thermometer, Pt 100Ω(Temp. Controller) + K Thermocouple (Overheat Protector)

Temp. Setting / Display Method: Digital Setting / Display

Overheat Protector: ON / OFF by Microprocessor

Heater (SUS316): 2.2kW

Window Dimensions: W340×H215mm

Included Accessories: Shelf plate 1pc., clamp 2pcs., stand 1pc., clamp holder 2pcs., tube connector 1pc., drainage cap 1pc.

Optional: Vessel installing holder, viscometer holder, external circulating pump, cooling coil, top cover of water bath

Stirring method: Stir by Pump

Temp. Control Accuracy: ±0.02~±0.07°C

Temp. Distribution Accuracy: ±0.3°C

Max. Temp. Reaching Time: Approx. 110min.

Stirring System (Magnet Pump): 30W

Internal dimensions（W×D×H mm）: 400×350×300mm

External dimensions（W×D×H mm）: 590×410×367mm

Remarks(dimensions): Bath Capacity Appox. 42L

Power Source: AC220V 11A Single phase

Weight: 25kg
