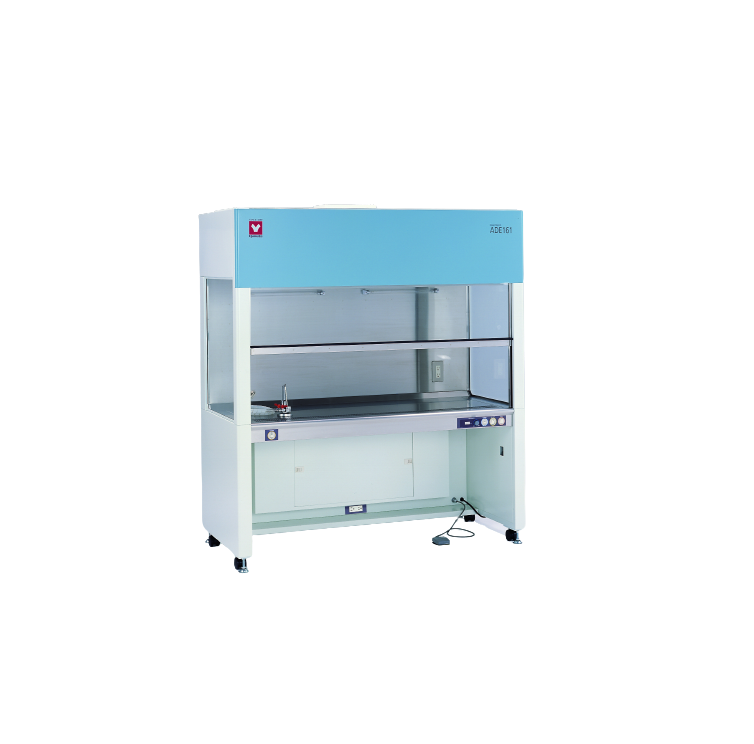

Yamato ADE101 Clean Bench (13 m3/min)

Air flow direction: Vertical direction (down flow) Forced circulation exhaust type (weak negative pressure)

Cleanliness: Class 100 (JIS Class 5)

Blow-off air speed (m/sec): Approx. 0.35 at early stage, Approx. 0.17 final

Illuminance (lx): 1000 (in the center of working face)

Load bearing of working face: 50kg (static load)

Air volume Work space: Approx.13 m3/min

Air volume Exhaust: Approx.1.5 m3/min

Flourescent lamp: 32W x 2pcs.

Blower (single phase): 150W x 1

Working surface level adjustment: Use adjusting foot (-18~+40mm)

Display of pressure difference: Differential pressure gauge

Gas burner: 1 pc/fire ignition type (can be used only when operating the machine)

Overcurrent protector: Earth leakage breaker 1pc

Optional item: Wind velocity controller: displays wind velocity and with wind adjust device attachment

Internal dimensions（H mm）: 720mm

External dimensions（W×D×H mm）: 980×770×1820mm

Power Source: AC115/220V Single-phase with step-down transformer

Weight: 190kg
