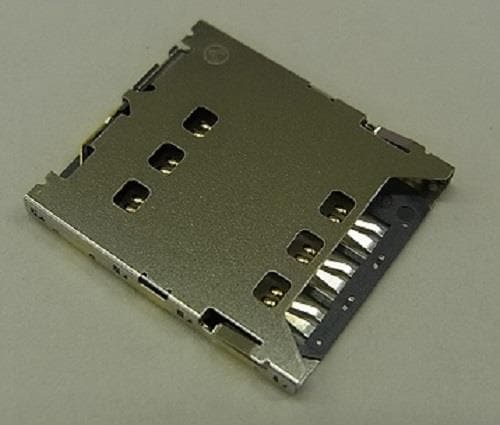

Yamaichi Electronics FUS006-3210-0 - Micro and Nano Sim Card Socket Connect

Pitch: 1.1 mm

Height: 1.35 mm

Length: 14.7 mm

Card Type: MicroSIM

Unit Weight: 3.642 g

Mating Cycles: 5000 Cycles

Mounting Type: Reverse

Current Rating: 500 mA

Mounting Style: PCB Mount

Number of Rows: 1 Row

Voltage Rating: 5 V

Contact Plating: Gold

Contact Material: Phosphor Bronze

Housing Material: Liquid Crystal Polymer (LCP)

Termination Style: SMD/SMT

Number of Contacts: 6 Contact

Insulation Resistance: 500 MOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C
