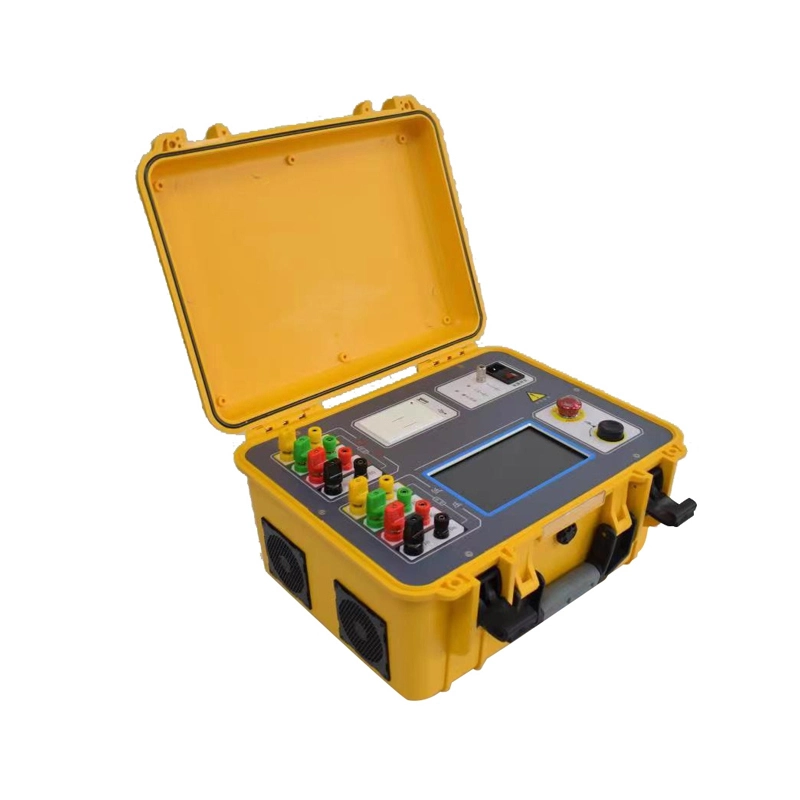

XZH Test XHZ1340A Transformer Tester for Star Connection Winding Resistance (100Ω)

Test Current: Three-phase test: 20A+20A, 10A+10A, 5A+5A, 1A+1A

Phase separation test: 40A, 20A, 10A, 5A, 1A, 0.2A

Test Range:

40A: 100.0μΩ ~ 0.5Ω

20A: 500.0μΩ ~ 1Ω

10A: 1mΩ ~ 2Ω

5A: 10mΩ ~ 4Ω

1A: 100mΩ ~ 20Ω

0.2A: 1Ω ~ 100Ω

20A+20A: 200μΩ~0.3Ω

10A+10A: 500μΩ~0.6Ω

5A+5A: 10mΩ ~ 1.5Ω

1A+1A: 100mΩ ~7Ω

Resolution: 0.1μΩ

Accuracy: ±(reading×0.2%+2 words)

Dimensions: 430mm × 320mm × 230mm

Weight: 12kg

Operating Conditions: Temperature: -10°C ~ 50°C

Humidity: ≤ 85%RH

Power Requirements: AC220V ± 10%

Power frequency: (50±1)Hz
