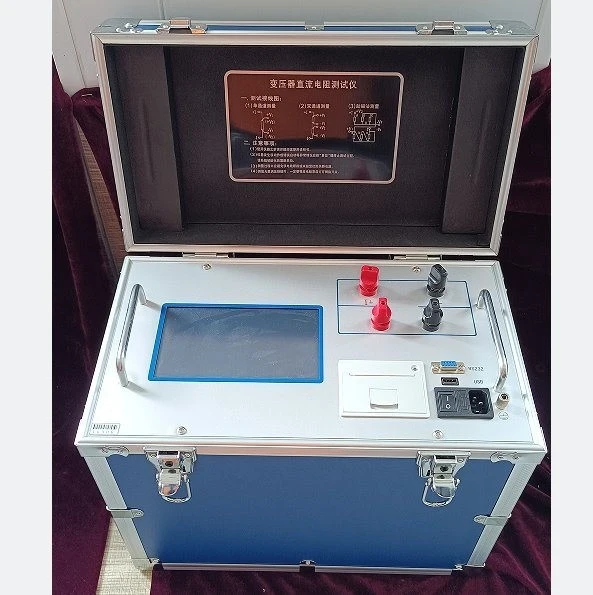

XZH Test XHZ1040 Single phase Transformer Winding DC Resistance Tester (8Ω , 40A)

Test current: <20mA, 2.5A, 5A, 10A, 20A, 40A

Test range:

50μΩ–500mΩ (40A)

100μΩ–1Ω (20A)

500μΩ–2Ω (10A)

1mΩ–4Ω (5A)

2mΩ–8Ω (2.5A)

10Ω–20kΩ (<20mA)

Accuracy: ±(0.2% + 2 digits) for 40A–10A ranges

Accuracy: ±(0.5% + 2 digits) for <20mA range

Minimum resolution: 0.1μΩ

Display: LCD monitor (resistance display with 4 significant digits)

Data storage: 1000 groups

Working environment:

Ambient temperature: 0°C ~ 40°C

Relative humidity: <90%RH, no condensation

Power supply: AC 220V ±10%, 50Hz ±1Hz, Fuse 10A

Size:

Host: 405 × 230 × 355 (mm)

Wire box: 360 × 260 × 180 (mm)

Weight:

Host: 15.1kg

Wire box: 5.75kg

Test lead length: Standard 13 meters (can be customized)

Maximum power consumption: 1000W
