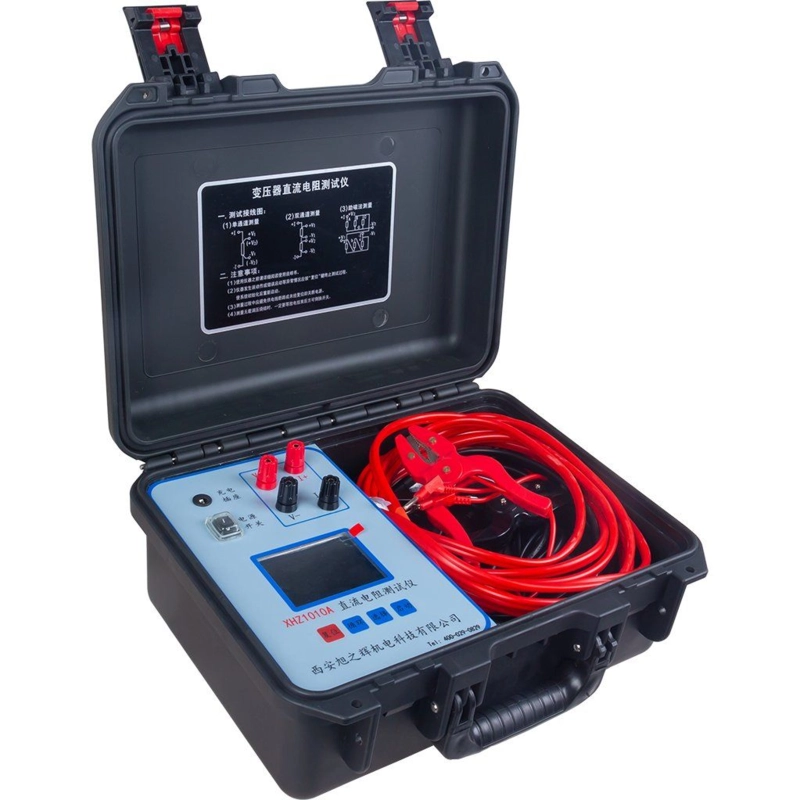

XZH Test XHZ1010S Transformer DC Resistance Tester (20KΩ)
ManufacturerXZH Test(View more products from this manufacturer)
ModelXHZ1010S
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Test Current: AUTO, <20mA, 40mA, 200mA, 1A, 5A, 10A
Measuring Range & Accuracy:
0.5mΩ~0.2Ω (10A)
1mΩ~3Ω (3A)
5mΩ~6Ω (1A)
100mΩ~40Ω (200mA)
1Ω~2000Ω (40mA)
100Ω~20kΩ (<5mA)
Accuracy: ±(0.2% + 2 digits)
Minimum Resolution: 0.1μΩ
Display: LCD (4-digit resistance display)
Data Storage: 1000 test groups
Operating Environment: 0°C~40°C, <90% RH (non-condensing)
Power Supply: Built-in lithium battery with external charger
Dimensions: 360 × 290 × 170 mm
Weight: 6.25 kg (complete set)
