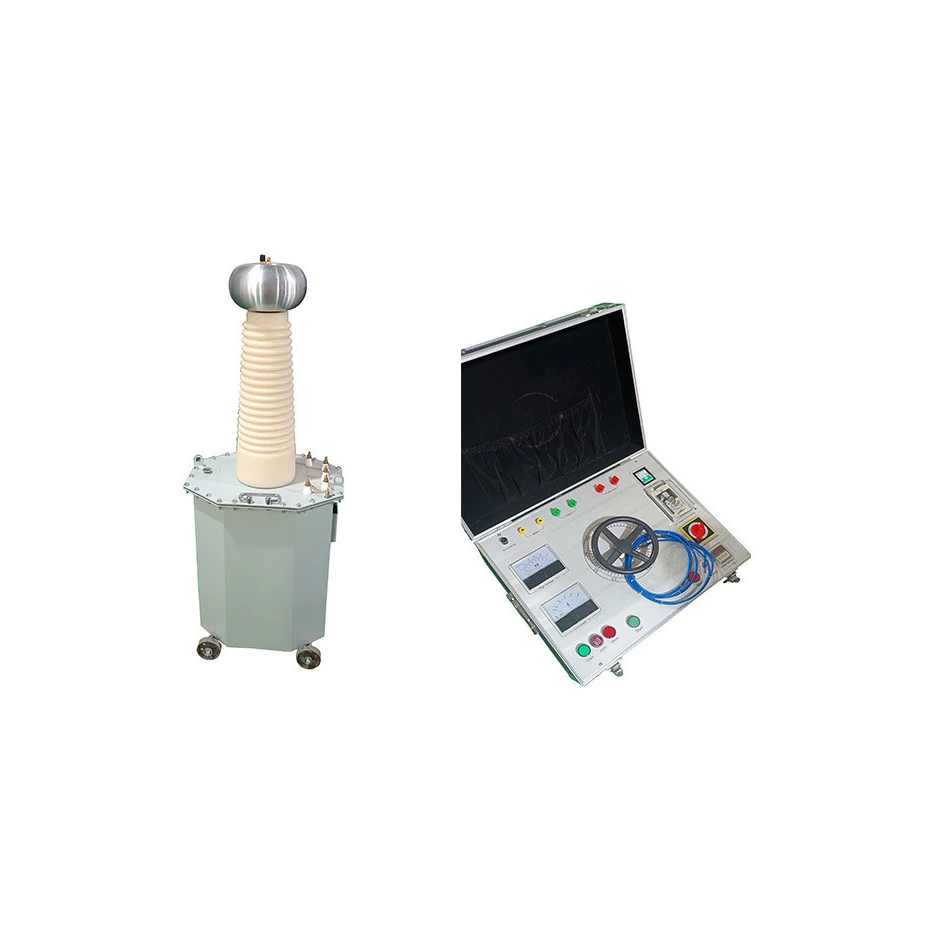

XZH Test XHYB-10/100 Electronic High Voltage Test Transformer AC DC Hipot Tester (10kVA)

Compact structure, small volume, convenient to carry;

No need to maintain, wiring simple operation;

For field use, or as the standard voltage transformer and the test transformer in the laboratory.

Suitable for short cables and small capacitance test objects.

Standard: DL/T848.2-2004

Rated nominal capacity: 10kVA

Output voltage: AC 100kV, DC 140kV

Input voltage of operation box: AC 220/380V

AC output current: 100mA

DC output current: 100mA

Output voltage of operation box: AC 0–250/400V

Loss: No-load loss ≤15%, load loss ≤15%, total loss ≤10%

No-load current: ≤30%, impedance voltage ≤15%, turn ratio error ≤±1%

Over current protection: Continuously adjustable, manual setting
