XZH Test XHTX1318AJ No-Load Losses Test Transformer Capacity Tester

Technical Parameters

The output range of built-in battery

Voltage:0～10V

Current:0～10A

The input range of characteristic testTouch LCD Digital Load And No-Load Losses Test Transformer Capacity Tester 1 power source

Voltage:0～750V

Current:0～100A

Accurate of test

Voltage, current:±0.2%

Power:±0.5%(CosΦ>0.1), ±1.0%(0.02<CosΦ<0.1)

Working temperature: -20℃～+60℃

Requirement of charger

Electric supply AC160V～265V

Adapter output 12.6V 1000mA

Insulation

⑴ Insulation resistance between capacity , voltage, current to enclosure ≥100MΩ

⑵ bear the 2kV power frequency (effective value) between the input power and machine enclosure, testing time is 1 minute.

Volume :32cm×25cm×12cm

Weight: 2.5KGS

Operation panel diagram

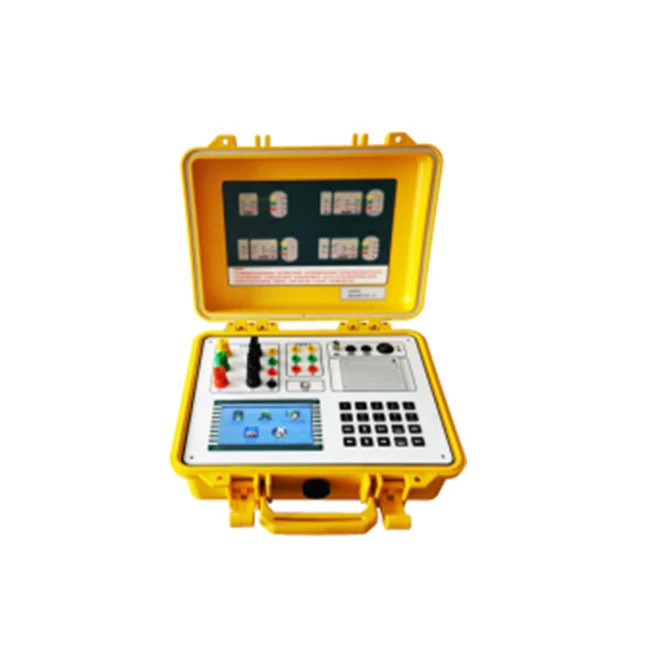

The operation panel is like figure 1 : including printer , LCD, keyboard, the wiring hole of capacity test , binding post of characteristic test and communication interface.
