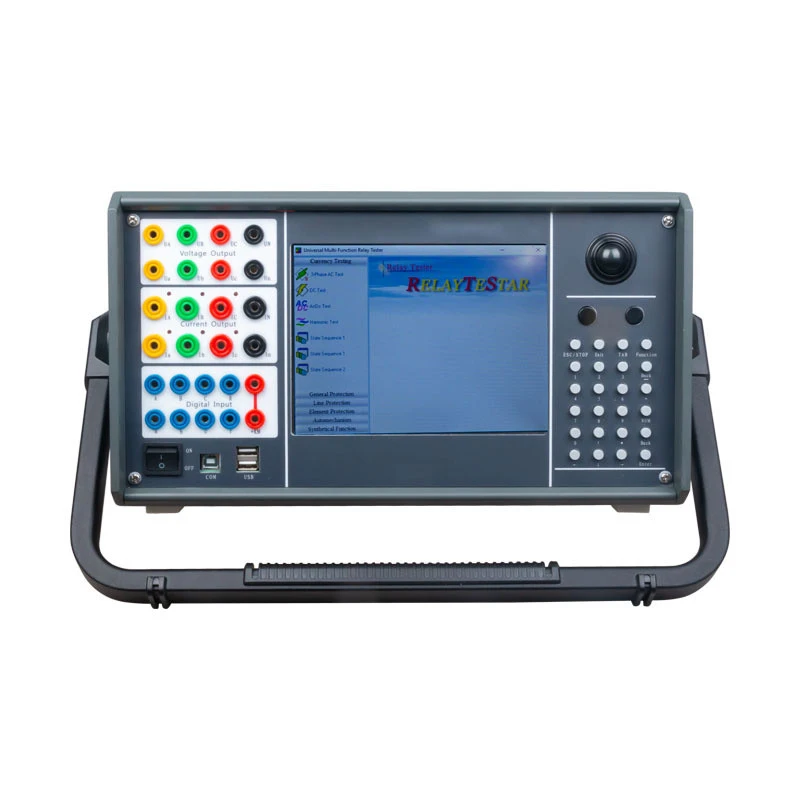

XZH Test XHJB666 Digital Transformer 6-Phase Voltage and Current Relay Protection Tester

AC current output:

Phase current output (effective value): 0~40A,

Output Precision: 0.2 degree

3 phase parallel current output (effective value)  : 0~120A

A Long-time Phase current: 10A

Maximum output power of Phase current: 450VA

Maximum output power of 3 parallel current: 900VA

Maximum Permitted work time of 3 parallel curren: 10S

Frequency range ( fundamental): 20~1000Hz

Harmonic time   : 2~20

DC current output:

Current output  : 0~±10A / phase,  0~±30A / 3 parallel

Output Precision: 0.5 degree

AC voltage output:

Phase voltage output (effective value): 0~120V

Output Precision: 0.2 degree

Line voltage output (effective value): 0~240V

Phase voltage / Line phase output power   : 80VA / 100VA

Frequency range (fundamental)    : 20~1000Hz

Harmonic time   : 1~20

DC voltage output:

Phase voltage output range: 0~±160V

Output Precision: 0.5 degree

Line voltage output range: 0~±320V

Phase voltage / Line phase output power  : 70VA / 140VA

10 path digital input and 8 path digital output:

Time measuring range: 0.1ms ~ 9999s

accuracy of measurement: <0.1ms

Volume & weight  : 400×360×160mm³ ,15kg
