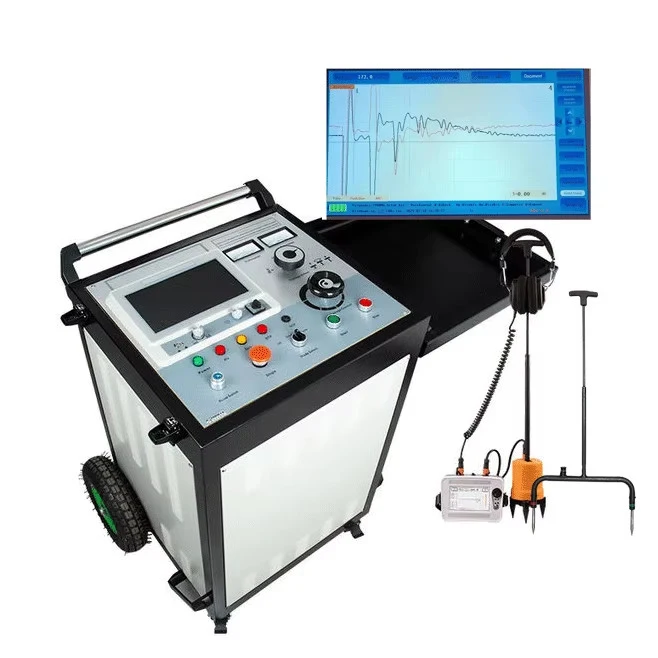

XZH Test XHHV535-2TSB+XHDD503E Discharge Energy Portable Cable Fault Location System

XHHV535-2TSB Cable Fault Location System

Surge HV voltage: 0-8kV/16kV/32kV

High voltage side current: 0-60mA

Inside capacitor: 2μF/32kV, 8μF/16kV, 32μF/8kV

Surge time: Auto surge about 7s, manual control available

Surge energy: 1024J

Surge power: 2KVA

Weight: ≤120kg

Power supply: AC220V±15%, 50Hz±2Hz

HDD503E  Cable Fault Pinpointer

Sound channel bandwidth options: All-pass, Low pass, High pass, Band pass

Channel adjustment: 8 levels of sound, magnetic and voltage

Sound output: 16-level gain (0-112dB), 350Ω impedance

Detection range: 0.00-99.99ms, 75mV-75V

Detection accuracy: Positioning ≤0.1m; Step voltage ≤0.5m; Path ≤0.5m

Power supply: 4×18650 standard lithium batteries

Standby time: >8 hours

Operating conditions: -25°C to 65°C, ≤90% humidity

Dimensions: 428L×350W×230H mm

Weight: 7kg
