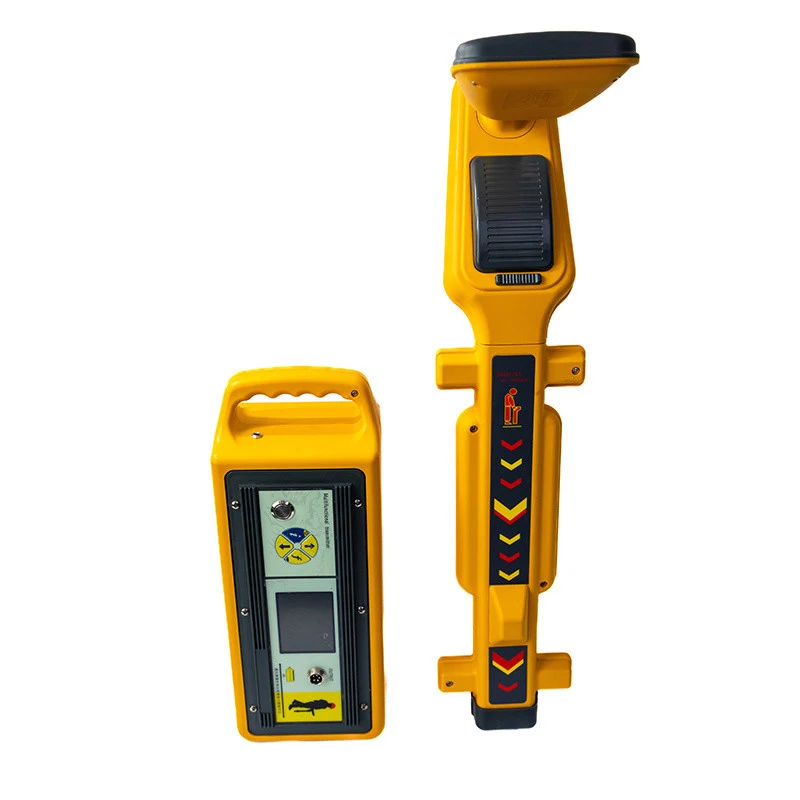

XZH Test XHGX507X Customization Underground Cable Pipe Locator for Route Tracing

Function introduction

Switch key: This switch is a self-locking switch; press it to turn on the power, the transmitter is in working state; pop up to disconnect the power supply, the transmitter is in a shutdown state.

Output port: This port is a multi-core dedicated aviation socket; it is used to change the output mode of the signal. Connecting the direct connection line is the direct connection mode; inserting the coupling clamp connection is the coupling mode; not connecting the line is the induction mode.

Liquid crystal display area: Display the required basic information.

Frequency key: This key is a jog soft switch; the frequency of the output signal can be changed every time it is pressed; the initial power-on is 577Hz. Initially 8KHz in sensing mode. In the frequency setting menu interface, press this key to select or cancel the frequency covered by the light bar; in the multi-frequency mode setting, press this key to choose to replace the output frequency channel.

Power key: This key is a jog soft switch; the output power can be changed once every time it is pressed, and it can be selected from low-grade, mid-grade, high-grade and full-grade. Flip through the frequency menu; in multi-frequency mode setting, press this key to select the output frequency.

Menu key: This key is a jog soft switch; press this key to cycle into the frequency setting menu, resistance measurement mode, and multi-frequency mode setting.

Charging port: This port is a Φ2.1 charging stand; it is used to connect a special charger to charge the battery.

Transmitter interface display content

Frequency: Display the current output frequency

Power: Display the current output power; it can display low-grade, mid-grade, high-grade and full-grade respectively

Mode: Displays the current working mode; direct connection, coupling, and induction can be displayed separately

Current: Display the current loop current value; the effective display is 0–999mA

Impedance: Display the current loop impedance value; the effective display is 00001–20000Ω

Power: Indicates the current battery power; represented by a battery symbol, all black is full power, and the left is the current power percentage display

Matching tip: When the circle below the picture starts to roll, it means that the transmitter is working normally

Frequency setting: 577Hz, 815Hz, 8kHz, 33kHz, 65kHz, 82kHz, 133kHz, SS low, SS high, multi-frequency mode.
