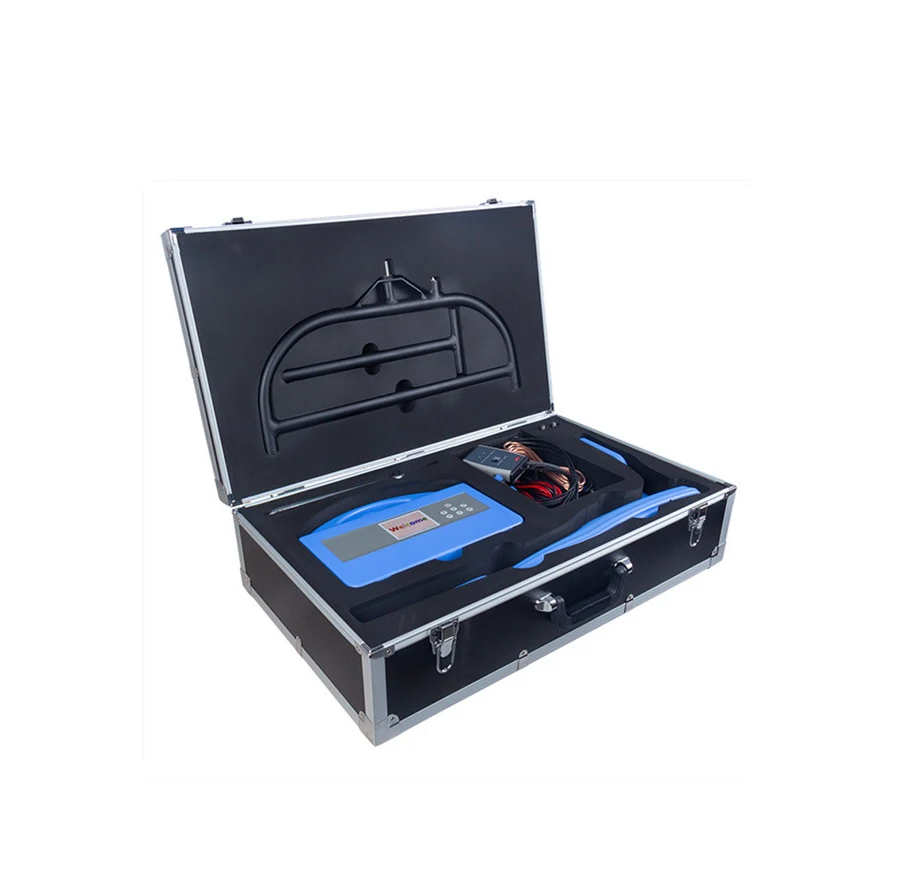

XZH Test XHGX507B Multifunction Digital Handheld Underground Metal Cable Pipeline Detector Customizable (200kHz)

Transmitter specifications:

Output mode: direct connection output, induction, caliper coupling.

Output frequency: 348Hz, 624Hz, 1280Hz, 1860Hz, 512Hz, 645Hz, 820Hz, 940Hz, 6KHz, 8kHz, 9kHz, 12KHz, 33kHz, 82kHz, 200kHz.

Output power: maximum 10W, adjustable in 10 levels, automatic real-time impedance matching.

Direct connection output voltage: up to 200Vpp.

Overload and short circuit protection.

Human-machine interface: 320×240 dot matrix liquid crystal display.

Built-in battery: 6 18650 lithium ion batteries, nominal 12.6V, 4.2Ah.

Receiver specifications:

Input mode: built-in receiving coil, identification clamp (optional), fault checking A-frame (optional).

Receiving frequency:

 Detection frequency: 348Hz, 624Hz, 1280Hz, 1860Hz, 512Hz, 645Hz, 820Hz, 940Hz, 6KHz, 8kHz, 9kHz, 33kHz, 65kHz, 82kHz,  131kHz, 200kHz.

Power frequency passive detection frequency: 50Hz/60Hz.

Pipeline detection mode: broad peak method, narrow peak method, sound valley method, peak valley method.

Cable identification mode: caliper (optional) intelligent identification and current measurement.

Human-machine interface: 480×272 dot matrix liquid crystal display.

Built-in battery: 4 18650 lithium-ion batteries, nominal 4.2V, 8.2Ah.

Positioning accuracy: depth 0-3m (±5%), depth 3-12m (±10%)

Depth measurement accuracy: three digits display, the maximum depth can be measured up to 12 meters

Current measurement accuracy: 1Ma

Maximum detection distance: The cable with good insulation in the direct Connection Method can reach Up To 15KM

Other

Volume: transmitter 320×240×90mm, receiver 670×128×310mm.

Quality: 1.9kg for transmitter and 1.4kg for receiver.

Charger: input AC100~240V, 50/60Hz, output DC4.2V-1A, output DC12.6V-1A.

Operating conditions: temperature: -10ºC-40ºC, humidity 5-90%RH, altitude <4500m.
