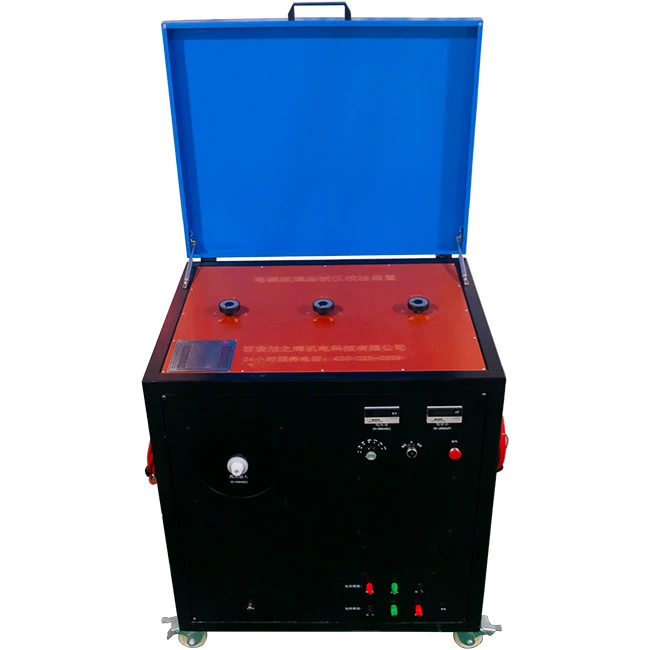

XZH Test XHGG510 Cable Fault Simulation System

1. The number of simulated fault waveforms is not less than 40

2. Near-end faults are tens of meters, and far-end faults are hundreds of meters

3. Low-resistance fault simulator: 0 ohm~hundred ohm level

4. Open circuit fault simulator: G ohm~infinity

5. Leakage high-resistance fault simulator: k ohm level~hundred M ohm level

6. Flashover high-resistance fault simulator: flashover voltage range is several kV~tens of kV

7. 2500V megohmmeter insulation resistance

a. Open circuit state is greater than 1.5GΩ

b. Short circuit state: 0 MΩ

c. Low resistance state is about 5MΩ

d. Leakage state is about 2MΩ

e. Flashover state is about 1GΩ

8. Rated voltage of simulated cable: DC 35kV

9. Remote control distance: 10 meters

10. Continuous working time: 8 hours

11. Cabinet size: 860mm long × 660mm wide × 2030mm high

12. Cabinet weight: 300KG

13. Use conditions:

a. Ambient temperature -30℃~ +70℃

b. Relative temperature RH≤85% (25℃)

c. Altitude h≤1000m
