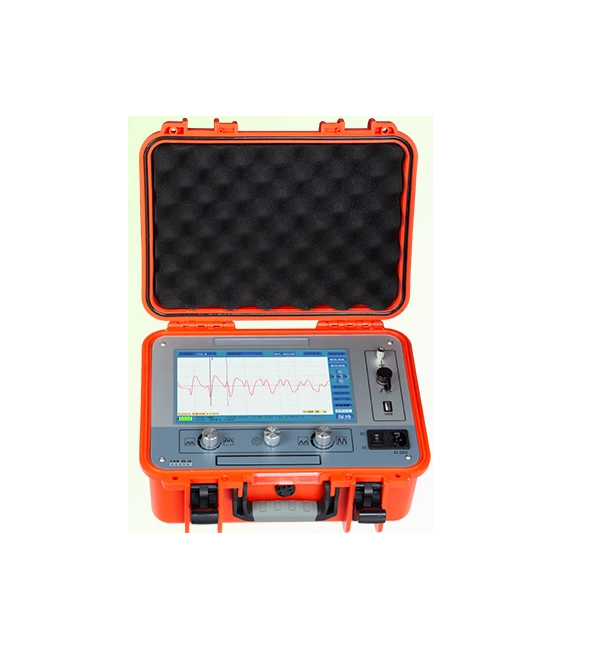

XZH Test XHGG502A2 Industrial Cable Fault Locator TDR (80MHz)
ManufacturerXZH Test(View more products from this manufacturer)
ModelXHGG502A2
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Sampling frequency: 80MHz
Low voltage pulse amplitude: 100V±15%
Ranging range: ≥65km
Test range: 300m/1km/5km/25km/65km
Pulse width: 0.125μs/0.50μs/2.50μs/7.25μs/10.0μs
Minimum resolution: 0.1m
Test blind area: ≤20m
Measurement error: ≤(0.5%×L+1m), L is the cable length
Power supply mode: charging AC110V~240V, 50Hz/60Hz
Volume and weight: L358mm×W284mm×H168mm – 4.7kg
Working conditions: Temperature -20°C~+65°C, relative humidity ≤90%, atmospheric pressure 750±30mmHg
