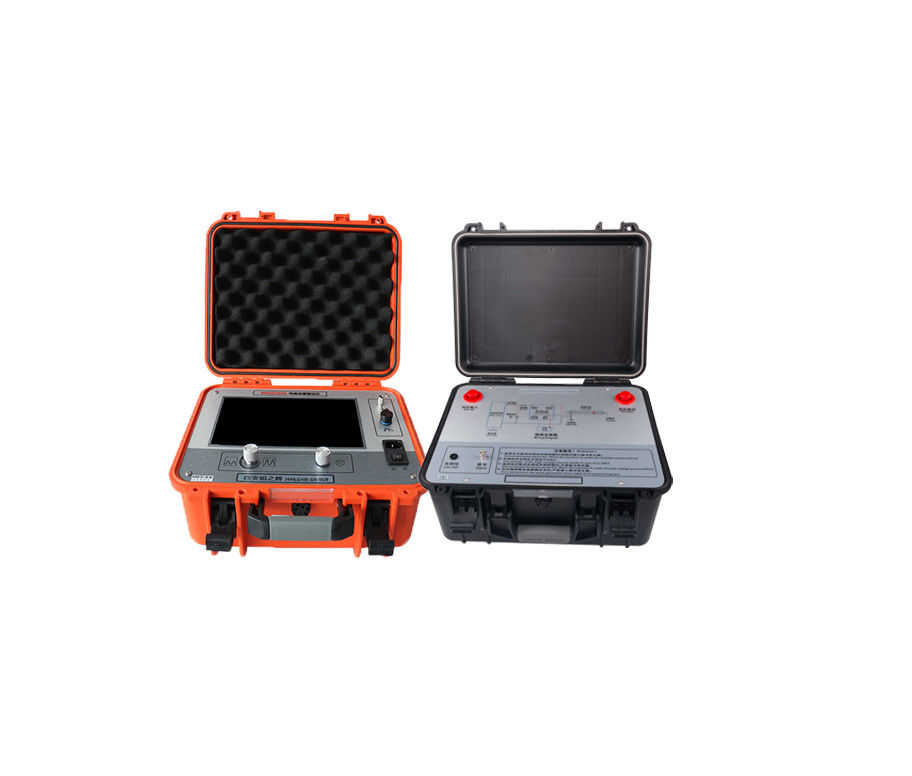

XZH Test XHGG502A ARC Cable Fault Locator (1MHz~400MHz)

trắng ẩn — bạn copy sang Notepad hoặc web form sẽ không bị lỗi, không bị cách dòng.

ENGLISH VERSION

Pre-location method: LV TDR (low voltage pulse / impulse reflection), HV TDR (high voltage flash / single impulse), ARC (multiple impulse arc reflection), ICE (impulse current), DECAY (voltage decay)

Velocity test: Automatically test signal propagation speed

Display: 10.1 inch industrial-grade touch screen

Operating system: Windows, automatically generates test reports

Functions: Speed, resistance, distance measurement

Sampling frequency: 1MHz~400MHz

Low voltage pulse amplitude: 300V±15%

Pulse width: 0.15µs / 0.30µs / 0.60µs / 1.20µs / 2.4µs / 5.0µs / 7.5µs / 10µs

Measuring distance: 100m / 300m / 500m / 1km / 3km / 5km / 10km / 25km / 50km / 100km / 120km

Reading resolution: 0.7m

Test accuracy: ±(0.5%×L + 1m), L is cable length

Test blind zone: ≤10m

Power supply: AC110V~240V, 50Hz/60Hz; built-in 5200mAh lithium battery

Charging time: About 2 hours

Working time: More than 5 hours

Pulse coupler withstand voltage: DC 35kV

Operating temperature: -20℃~+65℃

Operating humidity: ≤90% RH

Atmospheric pressure: 750±30mmHg

Cable fault tester dimensions: 358mm × 284mm × 168mm

Cable fault tester weight: 4.7kg

Pulse coupler dimensions: 430mm × 380mm × 220mm

Pulse coupler weight: 10kg
