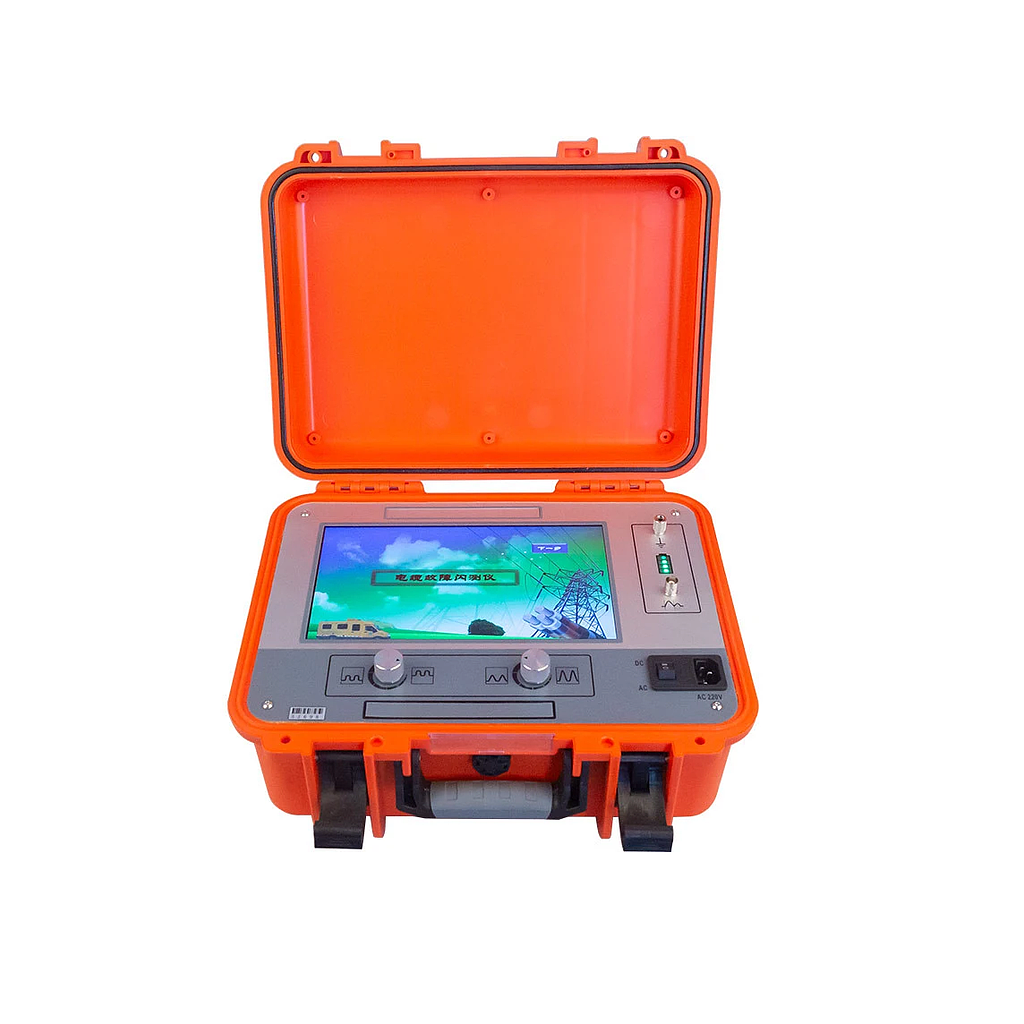

XZH Test XHGG501D Professional TDR Cable Fault Locator (100MHz)
ManufacturerXZH Test(View more products from this manufacturer)
ModelXHGG501D
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Sampling frequency: 100MHz
Pulse width: 0.1μs/2μs
Minimum resolution: 0.5m
Test blind zone: ≤20m
Ranging range: ≤30km
Measurement error: ≤(0.5%×L+1m), L is the cable length
Power supply mode: charging 220VAC±10%, 50Hz/60Hz; built-in 5200mAh lithium battery power supply
Working conditions: -20～+60°C, relative humidity ≤90%
Volume(mm): 358L×284W×168H
Weight: 4.6kg
