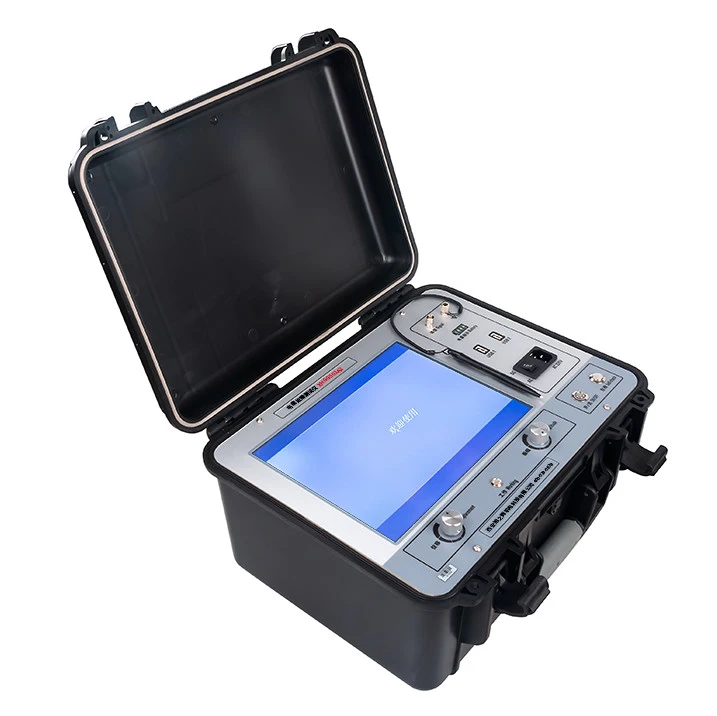

XZH Test XHGG501A2 High Voltage Underground TDR Cable Fault Locator (400MHz)

Sampling Frequency: 400MHz

Low Voltage Pulse Amplitude: 400V

Pulse Width: 0.25uS/2uS/4uS

Minimum Resolution: 0.1m

Test Blind Area: ≤10m

Distance Measurement Range: ≥68km

Measurement Error: ≤(0.5%×L+1m), L is the cable length

Test Cable Length is Set as: <1km (short distance); <3km (medium distance); >3km (long distance)

Power Supply: charging AC110V~240V, 50Hz/60Hz; built-in 10400mAh lithium battery for power supply

Working Conditions: temperature -20°C~+65°C, relative humidity 90%, atmospheric pressure 750±30mmHg

Volume and Weight: 430×380×220mm – 10kg
