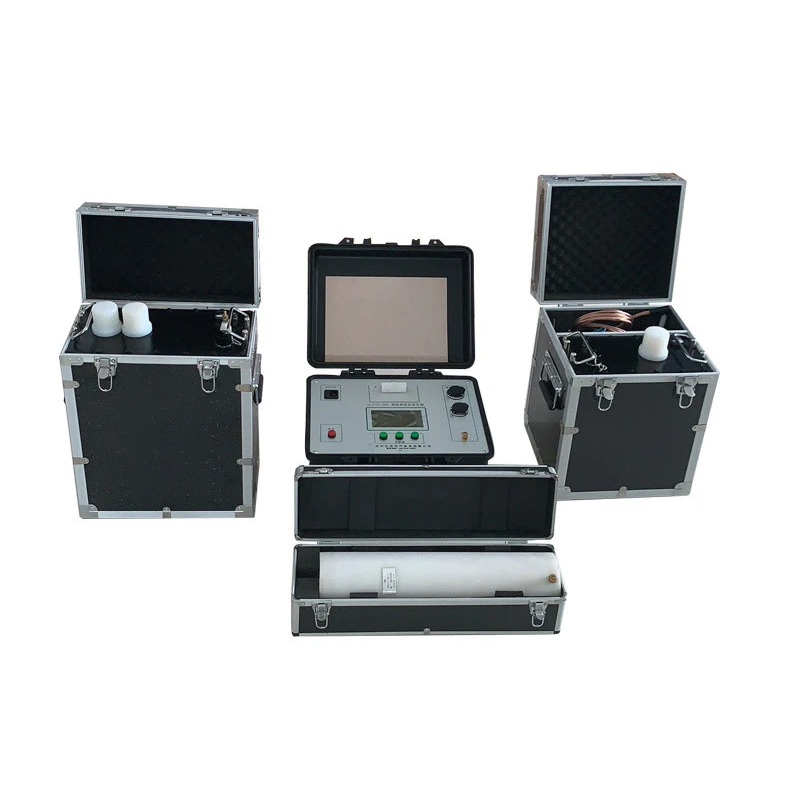

XZH Test XHDP-80 Cable Hipot Tester Vlf (80kV / 30mA)
ManufacturerXZH Test(View more products from this manufacturer)
ModelXHDP-80
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Rated voltage/current: 80kV / 30mA (Peak)
Output frequency: 0.1Hz, 0.05Hz, 0.02Hz
Measurement accuracy: ±3%
Positive and negative voltage peak error: ≤3%
Voltage waveform distortion: ≤5%
Load carrying capacity:
• 0.1Hz ≤1.1µF
• 0.05Hz ≤2.2µF
• 0.02Hz ≤5.5µF
Power fuse tube: 20A
Power supply: AC 220V ±5%, 50Hz
Use condition: indoor and outdoor; temperature: -10°C ~ +40°C
Humidity: ≤85% RH
