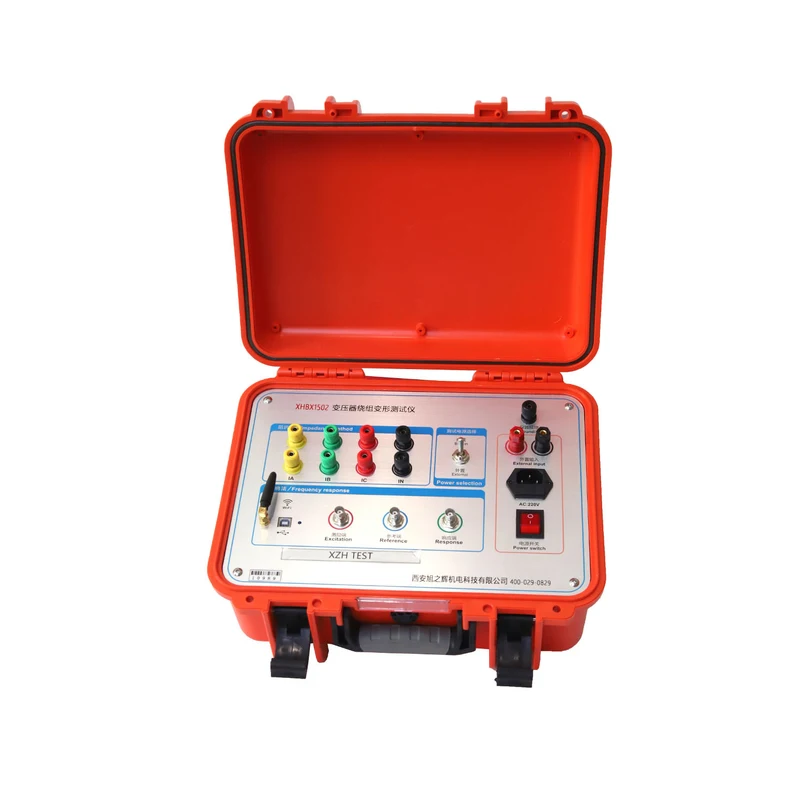

XZH Test XHBX1502 Accurate Diagnosis Of Transformer Internal Faults (10Hz – 10MHz)

Linear scan distribution: Sweep test range: (10Hz) - (10MHz) 40000 sweep point, resolution of 0.25kHz, 0.5kHz and 1kHz

Segmented sweep test distribution: Segmented sweep test distribution

Segmented sweep test distribution

Sweep test range: (0.5kHz) - (1MHz), 2000 sweep point;

(0.5kHz) - (10kHz)

(10kHz) - (100kHz)

(100kHz) - (500kHz)

(500kHz) - (1000kHz)

Amplitude test range: (-120dB) to (+20dB)

Amplitude test accuracy: 0.1dB

Scanning frequency accuracy: 0.0001

Signal input impedance: 1MΩ

Signal output impedance: 50Ω

Signal output amplitude: ± 20V

In-phase test repetition rate: 0.999

Instrument size: 300X340X120 (mm)

Instrument aluminum alloy box size: 310X400X330 (mm)

Weight: 10Kg
