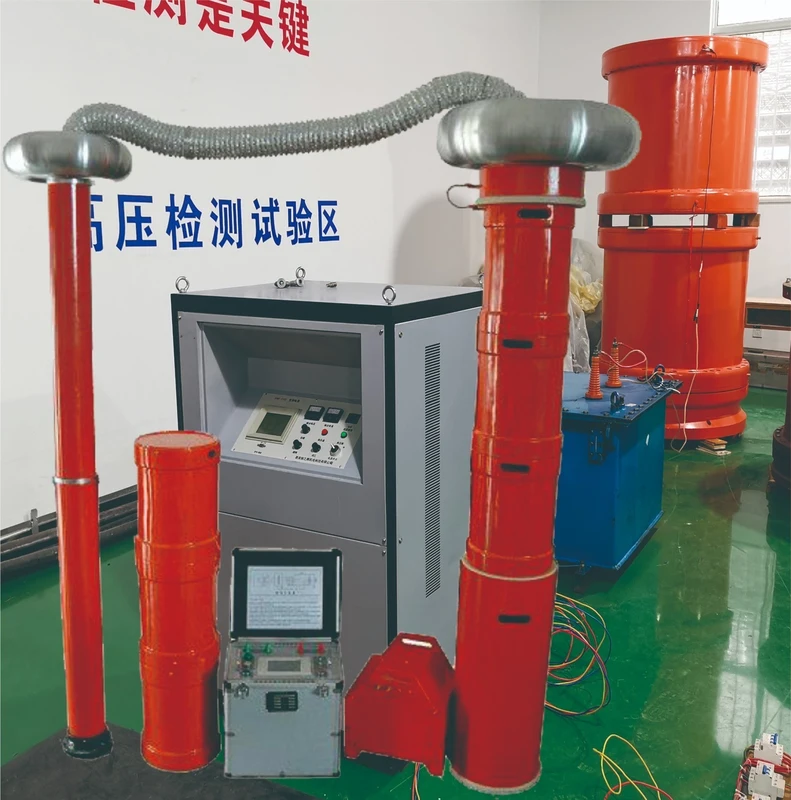

XZH Test XHBP-270/108 AC Withstand Voltage Test Device

10kV300mm² cable 6km, 35kV300mm² cable 2km

Rated output voltage: 500kV and below (AC RMS); output frequency: 20 ~ 300Hz;

Resonant voltage waveform: pure sine wave, waveform distortion rate <1.0%;

Maximum test capacity: 1000kVA and below;

Working time: under full power output, one continuous working time is 60min; quality factor: 30~90;

Frequency adjustment: sensitivity: 0.1Hz, instability: <0.05%;

Working power supply: 380/220V ± 15% / 50Hz ± 5%;
