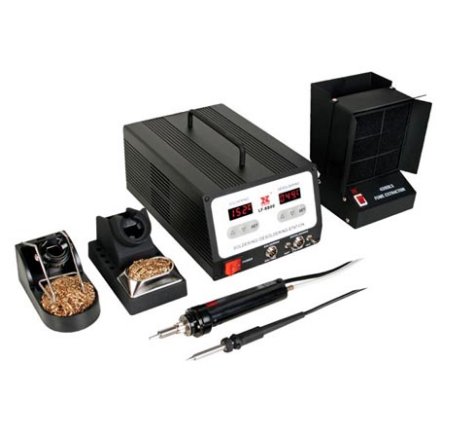

XYTRONIC LF-8800 Solder and Desolder Station
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Desolder Station
Model: LF-8800
Model: LF-8800
Solder and Desolder Station
A combined soldering and desoldering station specially designed for lead-free soldering/desoldering to meet RoHS requirements. The station has a built-in vacuum pump and incorporates electronic circuitry which enables the user to set the soldering tip temperature between 150°C (302°F) and 480°C (896°F) and desoldering tip temperature between 300°C (572°F) and 450°C (842°F) without changing tips or heating elements. Temperature is maintained within ±3°C (±6°F) of its operating temperature by a thermocouple sensor in the iron. Optional accessories are available separately, including an 80W hot air pencil and an SMD rework tweezer for surface mounting devices.
● Heater and sensor fail detection and automatic power off.
● Temperature 'lock-out' feature with password.
● ESD safe and spike-free circuitry.
● 'Zero voltage' electronic switching design protects sensitive components.
● Delayed suction helps eliminate the problem of solder clogging up the tip - pump continues sucking for 1.5 seconds after the actuator switch is released.
● Energy saver mode: After 20 minutes of inactivity, the temperature reduces to 150°C, after 40 minutes the power switches to 'sleep mode' which cuts power consumption and extends tip life.
● Iron working option: both soldering and desoldering irons can be used at the same time.
● Optional SMD tweezers for SMD chips, SOT, flat pack ICs etc.
● Optional hot air pencil.
● A range of soldering tips are available separately, please see order codes 85-5180 to 85-5196
● Supplied complete with soldering and desoldering irons and stands.
● Replacement irons are available separately.
A combined soldering and desoldering station specially designed for lead-free soldering/desoldering to meet RoHS requirements. The station has a built-in vacuum pump and incorporates electronic circuitry which enables the user to set the soldering tip temperature between 150°C (302°F) and 480°C (896°F) and desoldering tip temperature between 300°C (572°F) and 450°C (842°F) without changing tips or heating elements. Temperature is maintained within ±3°C (±6°F) of its operating temperature by a thermocouple sensor in the iron. Optional accessories are available separately, including an 80W hot air pencil and an SMD rework tweezer for surface mounting devices.
● Heater and sensor fail detection and automatic power off.
● Temperature 'lock-out' feature with password.
● ESD safe and spike-free circuitry.
● 'Zero voltage' electronic switching design protects sensitive components.
● Delayed suction helps eliminate the problem of solder clogging up the tip - pump continues sucking for 1.5 seconds after the actuator switch is released.
● Energy saver mode: After 20 minutes of inactivity, the temperature reduces to 150°C, after 40 minutes the power switches to 'sleep mode' which cuts power consumption and extends tip life.
● Iron working option: both soldering and desoldering irons can be used at the same time.
● Optional SMD tweezers for SMD chips, SOT, flat pack ICs etc.
● Optional hot air pencil.
● A range of soldering tips are available separately, please see order codes 85-5180 to 85-5196
● Supplied complete with soldering and desoldering irons and stands.
● Replacement irons are available separately.
Specification: | |
Input Power | 100-120Vac 60Hz / 220-240VAC 50Hz |
Wattage | 100W/100W Watts |
Temperature Range | 100º- 520º C |
Standard Tip | 44-710652/44-915412 |
44-710652/44-915412
