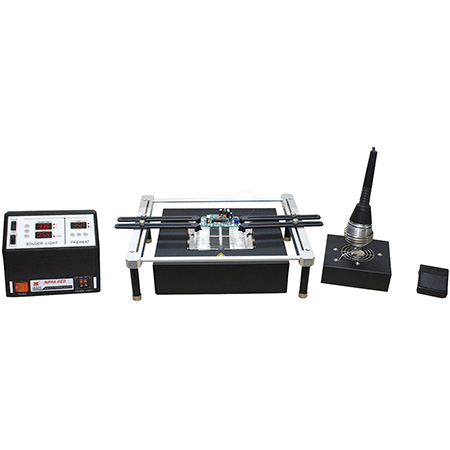

XYTRONIC IR860 SMD/BGA Rework Station

Solderlight Control

Power Rating: 100-120Vac 60 hz; 220-240Vac 50 hz

Fuse: T3.15A (Slow Type); T2A (Slow Type)

Output: 15Vac; 150W

IR Lamp Temp. range: 45º-450º Celsius (113º-842º Fahrenheit)

Time settings: 0-900sec

Size (W*H*D): 170 x 100 x 200mm (6.7" x 3.94" x 7.9")

Net weight: 7.25 lbs

Pre-heater

Power Rating: 115 vac; 230 vac

Fuse (Delay type): T 10 A; T 5 A

Output: 650W

Temperature range: 30º-350º Celsius (86º-662º Fahrenheit)

Time settings: 0-900sec

Size (W*H*D): 280 x 90 x 257mm; (11" x 3.5" x 10")

Net weight: 7.25 lbs
