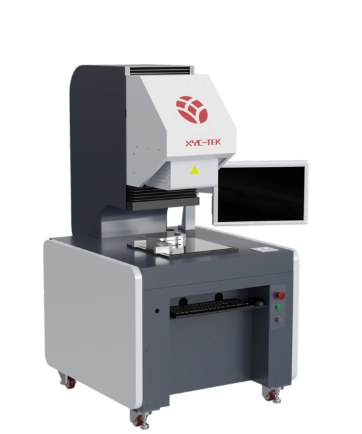

Xyc-tek UNG-AMP-400 Instant(Splicing/Scan) Video Measuring Machine (400 x 300 x 100 mm, 0.187x)

Dimension: 1330 x 900 x 1800 mm

Weight: 450 kg

Max Recommended Stage Load: 25 kg

XYZ Measured range: 400 x 300 x 100 mm

Measure Accuracy: ＜0.01 mm

Repeatability: ≤ 0.005 mm

GRR: ＜10 %

Relevance: ≤ 0.005 mm

Optical System

Ultra-high resolution area array camera

High definition dual telecentric corner lens

Magnification: 0.187x

Field of view: 110 x 80 mm

Working distance: 410 mm

Illumination

Optional surface light: coaxial light, ring light, strip light

Collimating backlight

Brightness adjustable

Software: Professional image measurement software LPI Pro 2021 V1.0

Power: AC100V-220V, 50/60Hz, 2.5KW
