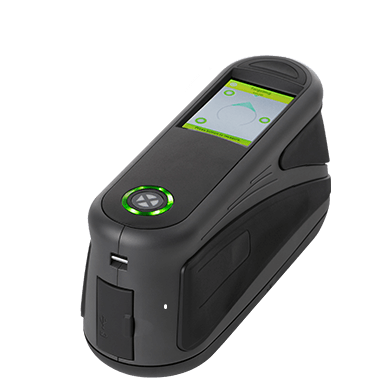

Xrite MA-T6 Portable Multi-Angle Spectrophotometer (400-700 nm; 6 measurement angles)

Battery: Lithium ion

Battery Life: Avg. 800 measurements

Calibration: internal white/black calibration; external white

Coarseness Repeatability: 0.09% (mean error on median)

Coarseness Reproducibility: 1.4% (mean error on median)

Color Differences: L*a*b*, L*C*h°, ΔE*; ΔECMC; ΔE DIN6175, ΔE2000

Communication Interface: USB 2.0

Dimensions (length, width, height): 266mm x 95mm x 128mm (26.6 cm x 9.5 cm x 12.8 cm) (10.4 in x 3.7 in x 5.0 in)

Humidity: 85% relative humidity max (non-condensing)

Illuminants: A, C, D50, D65, F2, F7, F11 & F1

Illumination Colors: Polychromatic white LED with blue enhancement

Illumination Spot Size: 9x12mm (rectangular)

Industry Standards: ASTM D 2244, E 308, E 1164, E 2194; DIN 6175-1, 6175-2; SAE J1545.ISO 11664-4

Instrument Display: 3.5 inch (8.9cm) color touch screen display

Inter-Instrument Agreement: 0.18 ∆E2000 avg. on BCRA

Lamp Life: 10 years lamp life

Languages Supported: DE, FR, EN, PT, ES, KOR, JA, Chinese, IT

Measurement Cycle Time: 5.5 seconds

Measurement Geometry: 6 measurement angles (6 illumination sources, 1 pick-up)

Measurement Spot: 9x12mm

Observers: Colorimetric Standard Observers 2° & 10°

Operating Temperature Range: 50F to 104F (10C to 40C)

Short Term Repeatability - White: 0.02 ΔE*

Sparkle Measurement: Sparkle Grade, Color Sparkle Parameter, Illumination 15as-15, 15as15, 15as-30, 15as-45, 15as45, 15as80, 15d Diffuse Coarseness

Sparkle Repeatability: 0.12% (mean error on median)

Sparkle Reproducibility: 1.9 % (mean error on median)

Spectral Interval: 10 nm

Spectral Range: 400-700 nm

Storage Temperature Range: -4F to 122F (-20C to 50C)

Voltage: 7.4vDC at 2400mAh
