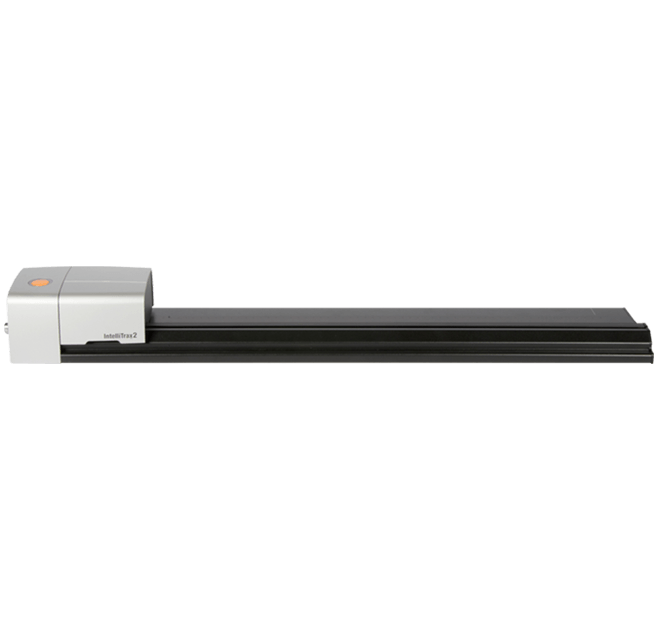

Xrite IntelliTrax2 Color Scanning Instrument (400 nm~ 700 nm, 170 mm/sec)

BestMatch Feature: Yes

Black Background With Sheet Storage: Yes

Calibration: Automatic on integrated and covered white reference

Color Differences: CIE ∆E* (1976), ∆E CMC, CIE ∆E* (2000), and CIE ∆E* (1994)

Closed Loop Support: Yes

Color Bar Alignment: Yes

Color Spaces: CIE L*a*b*, CIE L*C*h°

Communication Interface: Ethernet

Density Range: 0.0 D to 3.0 D

Density Standards: Status A, E, I, T, Tx, Ex, Hi-Fi

Display Resolution:

- Minimum: 17” touch-screen monitor with 1280 x 1024 resolution

- Recommended: 22” touch-screen monitor with 1920 x 1080 resolution

Humidity: 30 to 85% RH (non-condensing)

Illuminants: A, C, D50, D65, D75, F2, F7, F11, D12

Image Contact During Measurements: No Contact

Import/Export Format: CxF3, jtl, cbl,

Industry Standards: ISO 5-4:2009(E), ISO 13655:2009

Ink Wells / Ink Units:

- Density Version: Up to 8

- Spectral Version: Up to 16

Inter-Instrument Agreement: 0.3 dE*ab

Languages Supported: Chinese Simplified, Chinese Traditional, English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish

Light Source: Gas filled tungsten (illuminant type A) and UV LED

Measurement Geometry: 45°/0° ring illumination optics, ISO 5-4:2009(E)

Measurement Conditions: M0, M1, M3

Media Thickness: Max 1.0 mm

NetProfiler Support: Yes

Observers: 2° and 10°

Operating Temperature Range: 10°C to 35°C/50°F to 95°F

PantoneLIVE Support: Yes

Pass / Fail: Yes

Patch Size:

- Small: 2 mm x 3 mm

- Medium: 3 mm x 3 mm

- Polarizer: 3 mm x 3 mm

Scan Length: 29" (74cm)/32" (81cm)/40"(102cm)/44” (112cm)/56" (142cm)/65" (165cm)

Scanning Speed: 170 mm / sec

Spectral Analyzer: DRS spectral engine

Spectral Interval: 10 nm

Spectral Range: 400 nm to 700 nm

Storage Temperature Range: -20° to 50°C/-4° to 122°F

Short Term Repeatability - Density:

- On White: ± 0.01 D max.

- Cyan, Magenta, and Black: ± 0.02 D at 1.8 D

- Yellow:

- S/M: ± 0.02 D at 2.0 D

- Polarizer: ± 0.03 D at 1.8 D

Software Development Kit: Yes

Software Modes: Density /Spectral

Short Term Repeatability - White: 0.15 dE max

Supported Devices: IntelliTrax2, eXact

Scanning Area: Color bar within 38mm from the sheet edge

Single Pass Scan: M0/M1 or M0/M3 or M1/M3

Track Sizes: 29" (74cm)/32" (81cm)/40"(102cm)/44” (112cm)/56" (142cm)/65" (165cm)

Voltage: 100 - 240VAC, 50/60Hz

What's Included?: Vacuum pump, Cabling, Power supply, Ethernet cable, Software CD, Manuals, device certificate

Windows: Windows 7 (32 and 64 bit), Windows 8 (32 and 64 bit), Windows 10 (32 and 64 bit)
