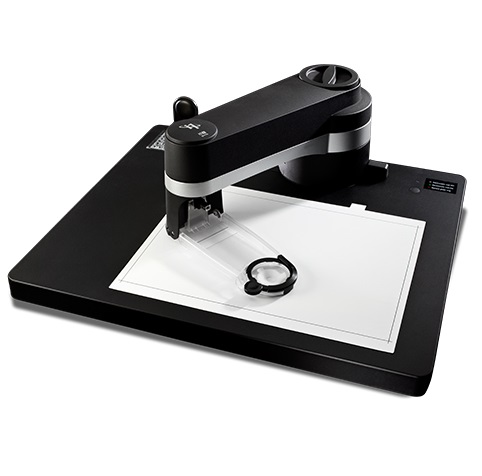

Xrite i1iO Color Scanning Instrument (> 400 patch /min, 32 x 23 cm)

Minimal Media Thickness: Max. 10 mm, 0.39”

Patch Size: Min: 6 mm x 7 mm (Width x Height)

Scanning Speed: > 400 patches / Minute, IT8.7/3 chart (924 patches) <= 2.2 minutes (with scanning mode in M0 measurement condition)

Unit Color: Silver/Black

Dimensions (length, width, height): 510 x 460 x 170 mm, 20 x 18.1 x 6.7 (Width x Depth x Height)

Weight: 4.5 kg, 9.9 lb (without i1 Pro device)

Communication Interface: USB 1.1

Voltage: 100 to 240 VAC, 50 / 60 Hz

Scanning Area: Positioning Area: 32 x 23 cm, 12.6” x 9” (Width x Height)

Calibration: Automatic on Integrated Calibration Reference

Measurement Background: white

What's Included?:

- i1iO table; Replacement Glider Ring; Auto rating power supply 100 – 240 VAC, 50/60Hz; Main power cable; USB cable; i1 Applications DVD; Quick Start Guide

Connectivity: Powered USB port
