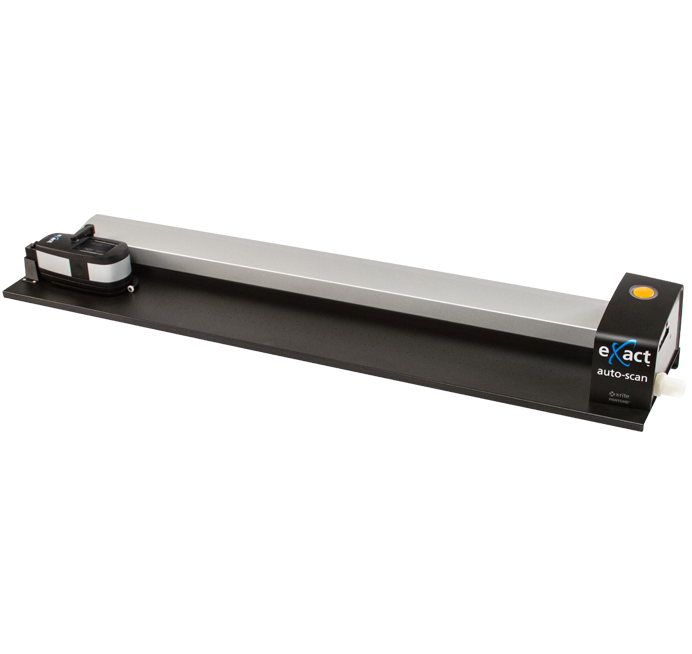

Xrite eXact Auto-Scan Color Scanning Instrument (400 nm ~700 nm; 7" / sec)

3rd Party Software Supported: X-Rite InkKeyControl, eXact Manager, NetProfiler, and third party scanning integrators

Aperture: eXact Auto-Scan supports 1.5mm & 2mm

Battery: Lithium Ion, 7.4VDC, 2200mAh

BestMatch Feature: Yes

Black Background With Sheet Storage: Black Background

Calibration: Automatic on integrated white reference

Closed Loop Support: Yes

Color Bar Alignment: Laser

Color Differences: CIE ∆E* (1976), ∆ECMC, CIE ∆E* (2000), and CIE ∆E* (1994)

Color Spaces: CIE L*a*b*, CIE L*C*h°, CIE XYZ and Yxy

Communication Interface: USB 2.0; Bluetooth (optional) - Class II

Density Range: 0.00 D – 3.00 D

Density Standards: Status A, E, I, T and G

G7 Certification: Yes with embedded G7, PSO, JapanColor job templates

Humidity: 30% to 85% RH (non-condensing)

Illuminants: A, C, D50, D55, D65, D75, F2, F7, F11, D12

Import/Export Format: CxF3, SDF, SVF, TVF

Industry Standards: ISO 5-4:2009(E), ISO 13655:2009

Instrument Display: Color touch-screen, 320 x 240 pixels

Inter-Instrument Agreement: 0.3 dE*ab

Internal Temperature & Humidity Sensor: Yes

Languages Supported: Chinese Simplified, Chinese Traditional, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Vietnamese

Light Source: Gas filled tungsten (illuminant type A) and UV LED

Measurement Conditions: M0, M1 (part 1), M1 (part 2) , M2, M3

Measurement Geometry: 45°:0° ring illumination optics, ISO 5-4:2009

Measurement Spot: eXact Auto-Scan supports 1.5mm & 2mm

Media Thickness: 1mm or less

NetProfiler Support: Yes

Operating Temperature Range: 10°C to 35°C; 50°F to 95°F

Pass / Fail: Yes

Patch Size: 3mm minimum with 1.5mm aperture

Scan Length: 29" (74 cm) or 40"(102 cm) maximum length depending on track size

Scanning Speed: 7" / sec (160 mm / sec)

Single Pass Scan: Yes

Software Development Kit: Yes

Spectral Analyzer: DRS Spectral Engine

Spectral Range: 400 nm to 700 nm

Storage Temperature Range: -20° to 50°C, -4° to 122°F

Track Sizes: 29" (74cm) or 40"(102cm)

Unit Color: Black/Silver

Voltage: 12 VDC tại 2.5 A

What's Included?: Track, power supply, interface cables, eXact Standard or Advanced with Scan and BlueTooth (if purchased), InkKeyControl software (if purchased) and documentation, guide, carrying case, device certificate

Windows: Windows XP (32bit), Windows 7 (32 and 64 bit), Windows 8 (32 and 64 bit), Windows 10 (32 and 64 bit)
