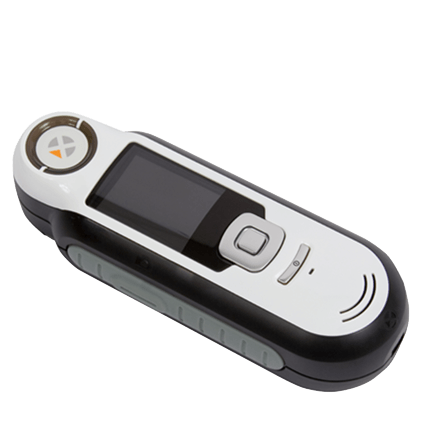

Xrite CAPSURE Portable Spectrocolorimeter (45°/0°, 8mm)

Short Term Repeatability - White: Typical 0.2 DE94

Measurement Geometry: 45°/0° Image Capture

Illumination Colors: 25 LED (8 x visible wavelengths, 1 x UV)

Illumination Spot Size: 9mm

Image Contact During Measurements: Video Preview

Lamp Life: >10 million flashes

Light Source: Independent tri directional 25 LED (8 x visible wavelengths, 1 x

Measurement Cycle Time: 1.8 Seconds

Measurement Spot: 8mm

Measurement Time: 1.8 Seconds

Spectral Analyzer: Monochrome camera

Aperture: 9mm

Reflectance Aperture(s): 9mm

Humidity: Non-condensing

Operating Temperature Range: 0C to 40C

Storage Temperature Range: -20C to 60C

Dimensions (length, width, height): 144x52x40mm

Weight: 165 grams

Package Dimensions (length, width, height): 180x184x60.5mm

Shipped Weight: 415 grams

Communication Interface: USB or USB & Blue tooth

Instrument Display: 45mm Color TFT

Languages Supported: English, French, German, Italian, Spanish, Swedish, Chinese Simplified, Chinese Traditional, Japanese, Korean, Turkish, Danish, Norwegian, Dutch, French Canadian, Greek, Portugues, Russian, Finnish

Software Development Kit: Bluetooth iOS, Androis and Windows

Battery: Lithium ion

Battery Life: Typical performance for continuous measurement operation 5 hours, 100h standby.

Voltage: 3.7V

Standards: Approx 1,000 dependent on format

Calibration: Integrated white calibration slider

Mobile Device Compatibility: Bluetooth iOS and Android devices

Optical Brigtener Compensation (OBC): Yes

Sample Preview: Yes - Video Preview

What's Included?: CAPSURE device, Protective carry pouch, Lanyard wrist strap, Quick Start guide, USB Cable 1.5M, Application and Documentation CD

Macintosh: OSX

Windows: WIN7, WIN8, WIN10
