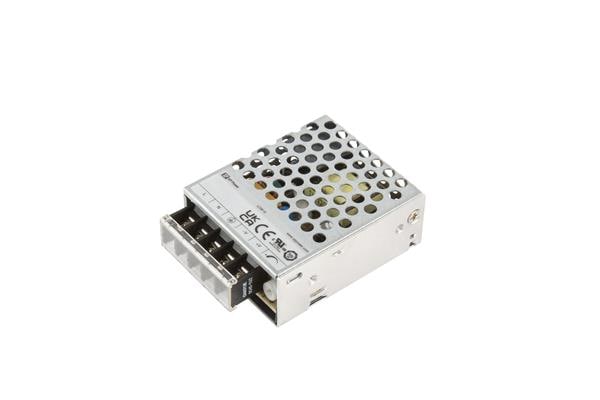

XP Power LCW15US24 Convection Cooled AC-DC 15W INDUSTRIAL

Width: 55 mm

Height: 25 mm

Length: 65 mm

Industry: ITE, Industrial

Approvals: CE, EN, UL

Dimensions: 65 mm x 55 mm x 25 mm

Efficiency: 83 %

Output Power: 15 W

Input Voltage: 85 VAC to 305 VAC, 100 VDC to 430 VDC

Mounting Style: Chassis

Input Frequency: 50 Hz, 60 Hz

Load Regulation: 0.5 %

Isolation Voltage: 4 kVrms

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 625 mA

Output Voltage-Channel 1: 24 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
