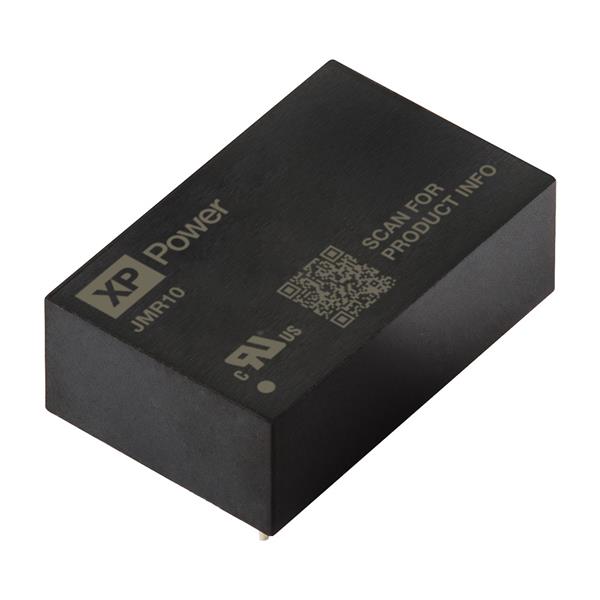

XP Power JMR1048D12 Isolated 10W PCB DIP24 18-75VDC input 4:1 medical DC-DC converter, dual output +/-12VDC +/-416mA

Width: 20.3 mm (0.799 in)

Height: 10.2 mm (0.402 in)

Length: 31.8 mm (1.252 in)

Industry: Medical, Industrial

Dimensions: 31.8 mm x 20.3 mm x 10.2 mm

Output Power: 10 W

Input Voltage: 18 VDC to 75 VDC

Mounting Style: Through Hole

Isolation Voltage: 5 kV

Number of Outputs: 2 Output

Input Voltage - Max: 75 V

Input Voltage - Min: 18 V

Input Voltage, Nominal: 48 V

Output Current-Channel 1: 416 mA

Output Current-Channel 2: 416 mA

Output Voltage-Channel 1: 12 V

Output Voltage-Channel 2: - 12 V

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
