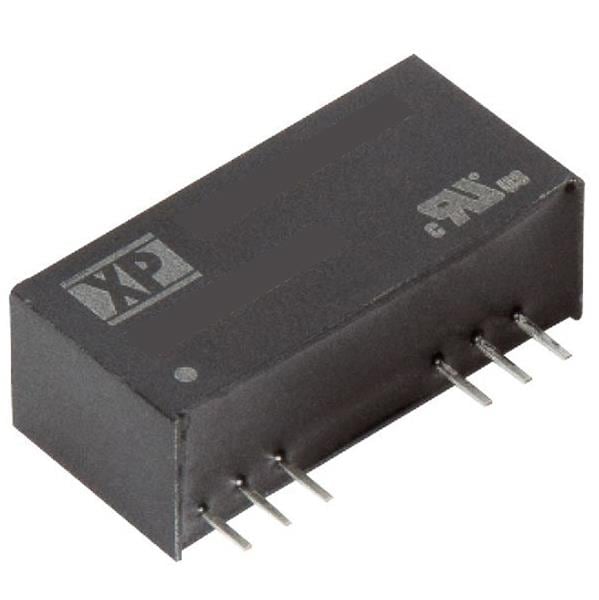

XP Power IMM0512S05 Isolated DC-DC, 5W, 2:1 input, Medical Approvals, SIP9

Width: 9.3 mm (0.366 in)

Height: 12.5 mm (0.492 in)

Length: 26 mm (1.024 in)

Industry: Medical

Unit Weight: 6.200 g

Output Power: 5 W

Input Voltage: 9 V to 18 V

Mounting Style: Through Hole

Isolation Voltage: 1.5 kV

Number of Outputs: 1 Output

Input Voltage - Max: 18 V

Input Voltage - Min: 9 V

Input Voltage, Nominal: 12 V

Output Current-Channel 1: 1 A

Output Voltage-Channel 1: 5 V

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 20 C
